LK-U220T
| Name | Unit | Name | Unit | ||
| X-axis travel | mm | 600 | A-axis braking method | Air brake | |
| Y-axis travel | mm | 400 | The distance from the spindle end face to the worktable | 400 | |
| Z-axis travel | mm | 300 | Workbench(turntable) dimensions | mm | 260 |
| X-axis rapid movement spee | m/min | 48 | Turntable load-bearing | kg | 30 |
| Y-axis rapid movement speed | m/min | 48 | Spindle taper shank model spedifications | BT30 | |
| Z-axis rapid movement speed | m/min | 48 | Spindle maximum speed | rpm | 20000 |
| X/Y/Z axis positioning accuracy | mm | ±0.008 | Spindle rated power | kw | 5.5 |
| Repeatable positioning accuracy of X/Y/Z axis | mm | ±0.005 | Spindle rated torque | N.m | 11 |
| A-axis travel( tilt axis) | ° | ±110 | Spindle maximum torque | N.m | 22 |
| A-axis maximum speed | rpm | 100 | Tool magazine form | Clamping artm type servo | |
| A-axis rated torque | N.m | 110 | The number of tools held by the tool magazine | pcs | 21 |
| A-axis positioning accuracy | arc | 8” | Tool changing time(T-T) | s | 4 |
| A-axis repeat posiyioning accuracy | arc | 6” | Maximum tool length | mm | 200 |
| C-axis stroke(rotary axis) | ° | 360 | Maximum tool weight | kg | 4 |
| C-axis maximum speed | rpm | 200 | Machine tool apperance dimensions | mm | 2350*2200*2400 |
| C-axis rated torque | N.m | 30 | Machine weight | kg | 3300 |
| C-axis positioning accuracy | arc | 6” | Machine tool air requirements | kg/cm3 | 6 |
| C-axis repeat posiyioning accuracy | arc | 4” | Total machine power | kw | 15 |
●High performance, high precision
●Widely applicable to complex, multi-faceted, high-precision, multi-faceted processing of product parts/moulds/electrodes.
Suitable for high-quality processing of any material.
●Stable material selection and reliable performance

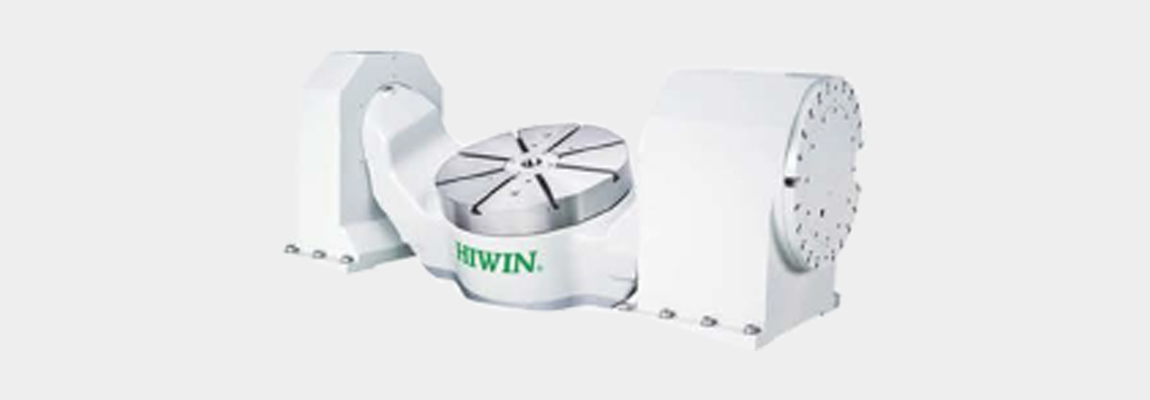

Disk diameter | 400mm | |
Center height | 300mm | |
Disk height | 300mm | |
T-slot width | 14H8 | |
Axial direction | Rotary axis(C axis) | Tilt axis(A axis) |
Rotation angle | 360° | ±120° |
Torque motor | TMRWA5 | TMRWA5 |
Maximum speed | 90r.p.m | 60r.p.m |
Continuous torque | 430N.m | 860N.m |
Maximum working torque | 810N.m | 1600N.m |
Braking method | Air pressure(6bar) | |
Braking torque | 2400N.m | 3240N.m |
Allowable load | 300kg | |
lNon-contact laser tool setter lCan detect tool problems such as tool length, tool diameter, tool tip breakage, and thermal deformation of processing tools lTool measurement repeatability can reach ±1.0㎛ lProtection level up to IPX8 |  |
| lSuitable for automatic workpiece alignment and inspection on machine tools lCan quickly center the blank workpiece on the machine tool lCollect XYZ surface absolute position data at a speed of 1000 points per second lCan measure complex 2D dimensions and 3D surface absolute positions at high speed lProbe head repeated measurement error 1.00um (480mm/min) |
