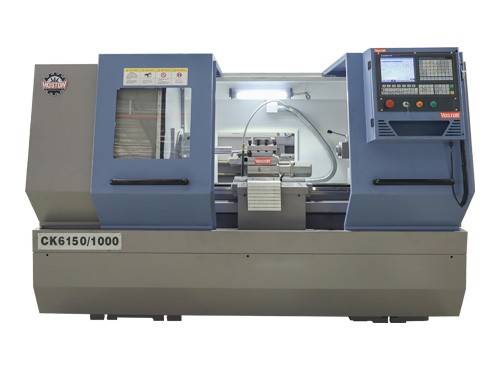

Max Swing Over Bed: Φ500 mm
Max Workpiece Length: 1000 mm
Max Swing Over Cross Slide: Φ280 mm
Rigidity: One-piece cast bed, induction hardened
Stability: 600mm extra-wide hard guideways
Precision: 15kW spindle, 0.0075mm accuracy
Max.machining length: 150mm
Max.swing dia.over bed: Φ240mm
Max.swing dia.over slide: Φ120mm
Swing over bed: 400mm
Swing over cross slide: 234mm
Spindle bore: 52mm
Swing over bed: 660mm(26’’)
Swing over cross slied: 420mm(17’’)
Spindle bore: 82mm(4’’)
Swing over bed: 560mm(22’’)
Swing over cross slied: 355mm(14’’)
Spindle bore: 80mm(3-1/8’’)
