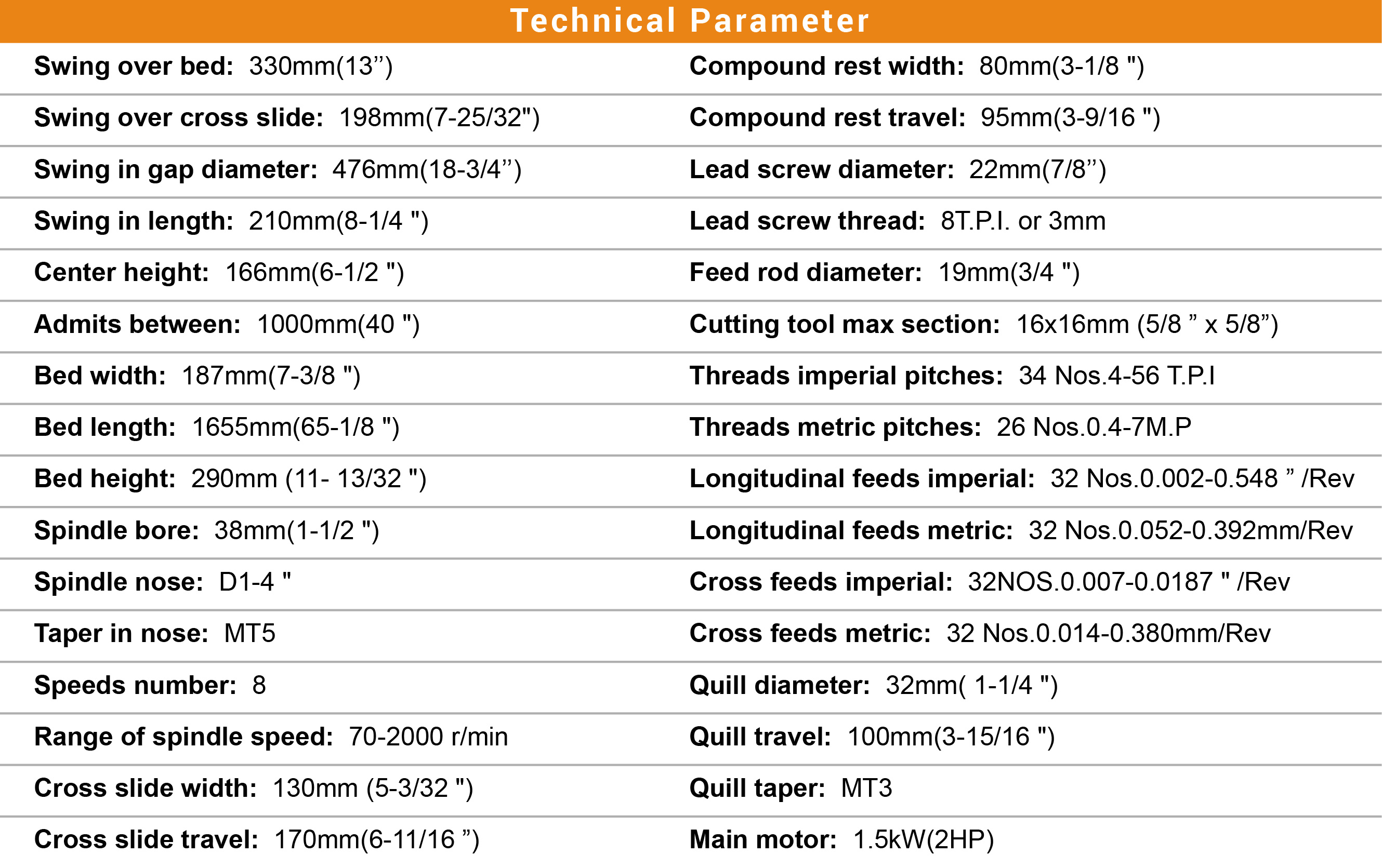

MODELS

C0632A

Swing over bed

330mm( 13 ")

Swing over cross slide

198mm(7-25/32 ")

Swing in gap diameter

476mm( 18-3/4 ")

Swing in length

210mm(8-1/4 ")

Center height

166mm(6-1/2 ")

Center Distance

1000mm(40 ”)

Bed width

187mm(7-3/8 ”)

Bed length

1655mm(65-1/8 ")

Bed height

290mm (11- 13/32 ")

Spindle bore

38mm(1-1/2 ")

Spindle nose

D1-4 ”

Taper in nose

MTN0.5

Speeds number

8

Range of spindle speed

70-2000 r/min

Cross slide width

130mm (5-3/32 ")

Cross slide travel

170mm(6-11/16 ")

Compound rest width

80mm(3-1/8 ")

Compound rest travel

95mm(3-9/16 ")

Lead screw diameter

22mm(7/8 ")

Lead screw thread

8T.P.I. or 3mm

Feed rod diameter

19mm(3/4 ")

Cutting tool max section

16mm x 16mm(5/8 ” x 5/8’‘)

Threads imperial pitches

34 Nos.4-56T.PJ

Threads metric pitches

26 Nos.0.4-7M.P

Longitudinal feeds imperial

32 Nos.0.002-0.548 " /Rev

Longitudinal feeds metric

32 Nos.0.052-0.392mm/Rev

Cross feeds imperial

32Nos.0.007-0.0187 n /Rev)

Cross feeds metric

32 Nos.0.014-0.380mm/Rev

Quill diameter

32mm(1-1/4 ")

Quill travel

100mm(3-15/16 ")

Quill taper

MTN0.3

Main motor

1 -5kW(2HP)
