| Parameter | WLH-DRS1050 | WLH-DRS1050P |
|---|---|---|
| Max. Diameter of Material | 1050mm | 1050mm |
| Main Motor Power | 22kw servo | 27.5kw servo |
| X Travel | 610mm | 610mm |
| Z Travel | 780mm | 780mm |
| Tailstock Force | 30kn | 35kn |
| Travel of Tailstock | 580mm | 580mm |
| Amount of Tools | 6+6 | 6+6 |
| Thickness of Work Piece (Al, Cu) | 0.5-5mm | 0.5-6mm |
| Thickness of Work Piece (C.S) | 0.5-4mm | 0.5-4.5mm |
| Thickness of Work Piece (SS) | 0.5-3mm | 0.5-3.5mm |

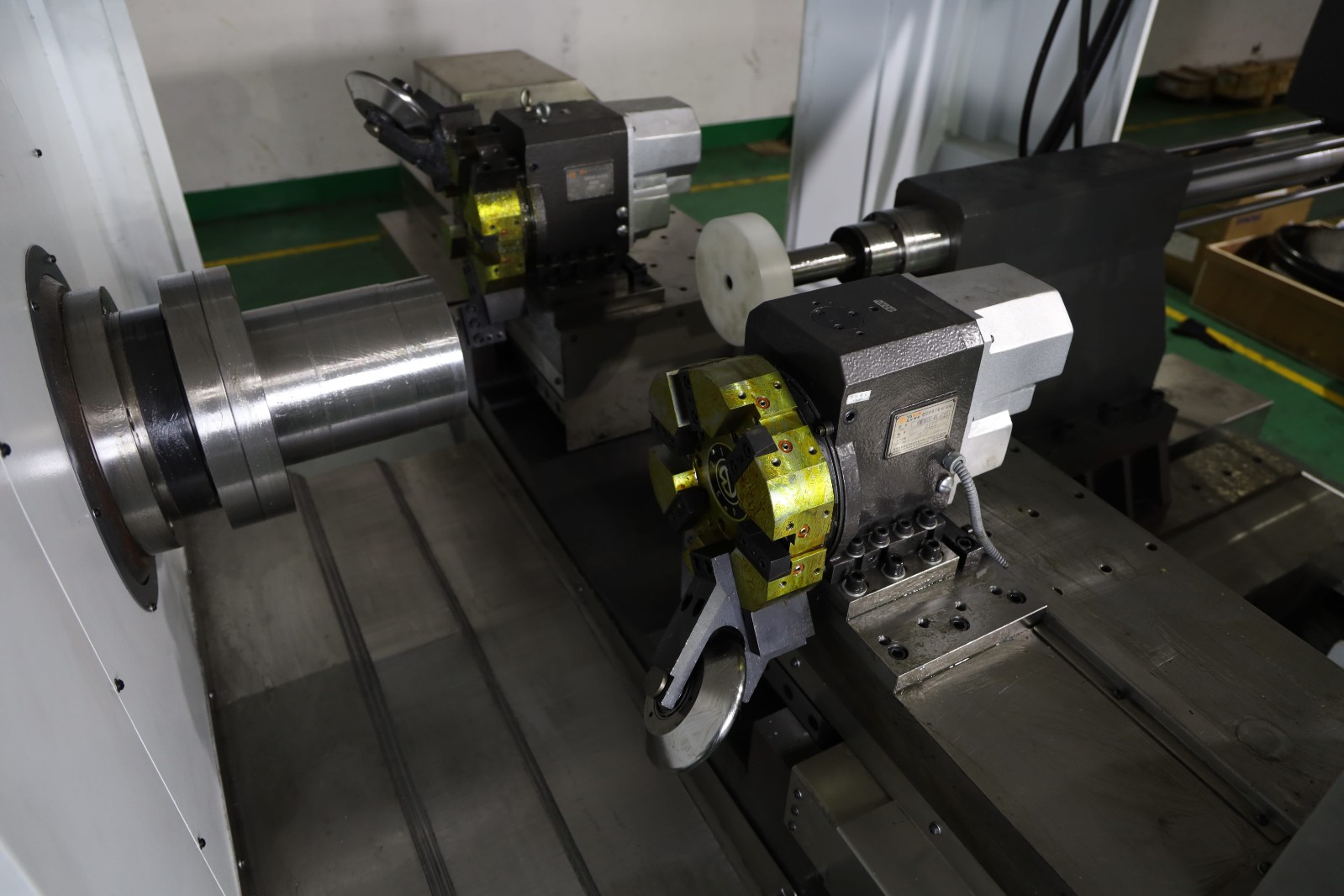

Double Slides & Double Rollers: Enables synchronizing and stagger spinning for balanced force distribution during powerful compressive forming

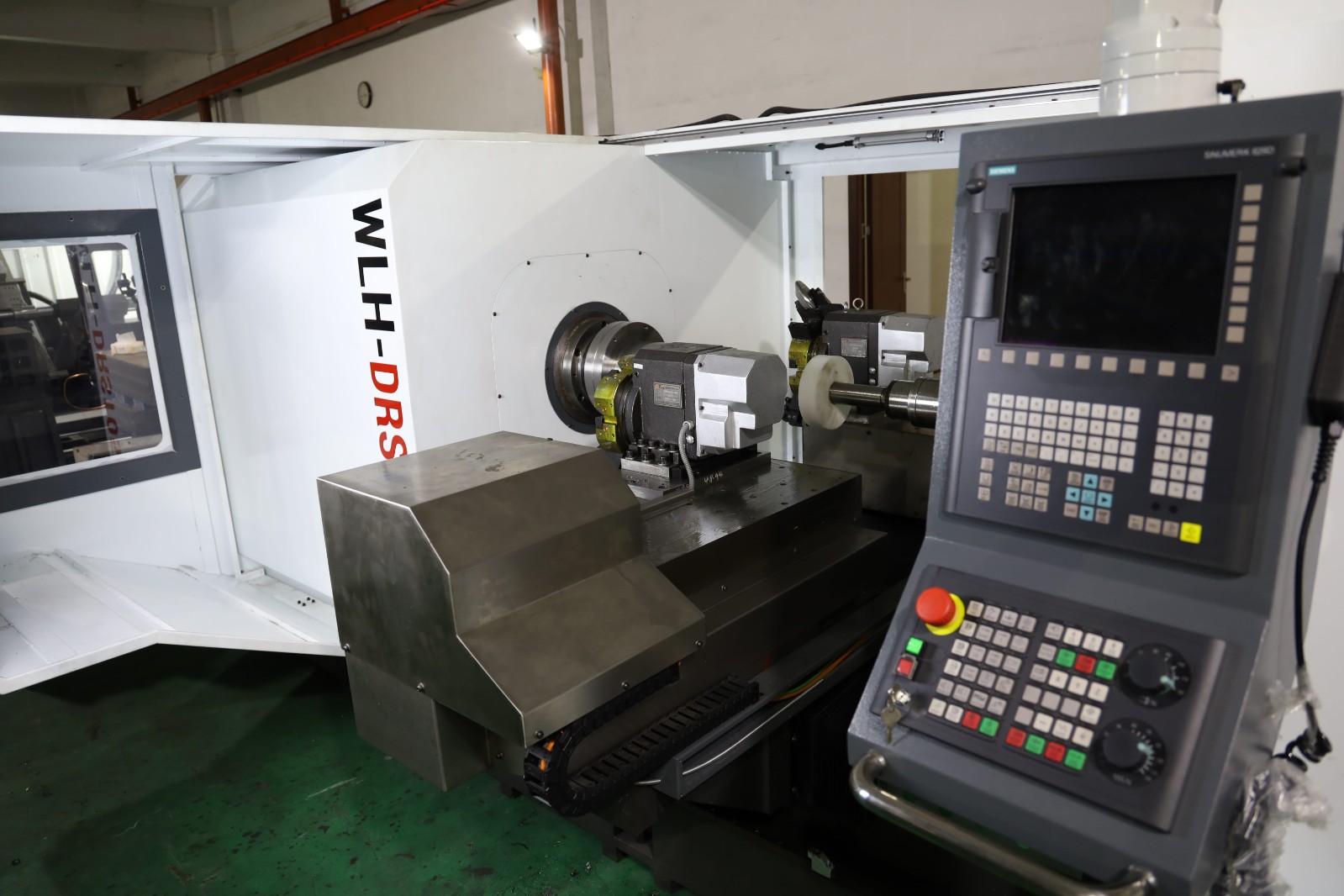

Multi-Axis Multi-Channel CNC: Delivers high precision, automation, and stability for complex shapes
High Processing Capacity: Handles Al/Cu up to 6mm, Carbon Steel up to 4.5mm, and Stainless Steel up to 3.5mm
Broad Applications: Ideal for automotive, ventilation, packaging, containers, electric power, and defense industries
The machine body is extremely rigid and runs with remarkable stability. It produces workpieces with superior surface finish and excellent dimensional consistency, significantly boosting our production efficiency.
Excellent product, easy to use, and the support team was very responsive. Very satisfied with our purchase.
