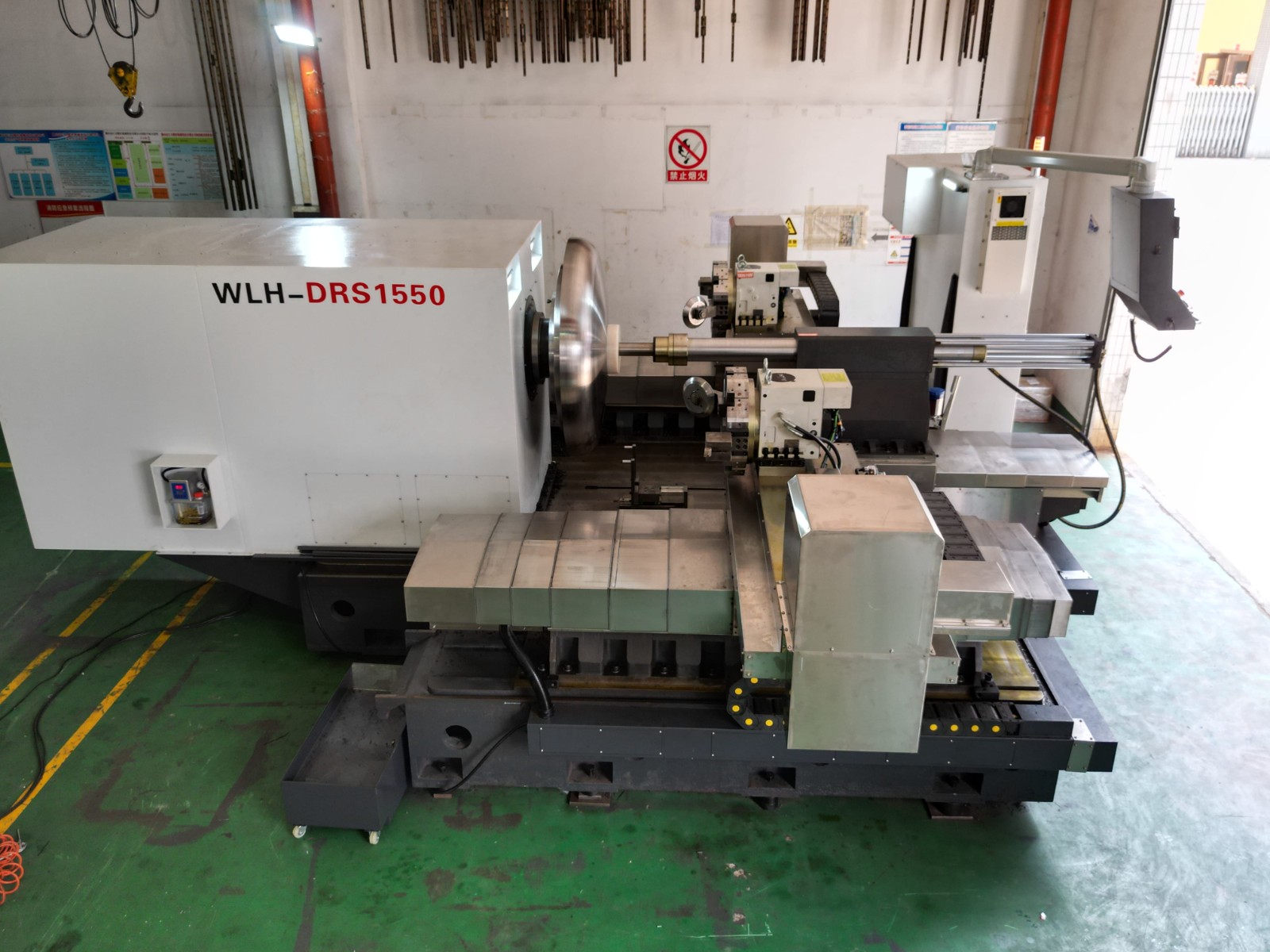

| Parameter | WLH-DRS1550 | WLH-DRS1550P |
|---|---|---|
| Max. Diameter of Material | 1550mm | 1550mm |
| Main Motor Power | 35kw servo | 55kw servo |
| X Travel | 500mm | 500mm |
| Z Travel | 1000mm | 1000mm |
| Tailstock Force | 50kn | 55kn |
| Travel of Tailstock | 1000mm | 1000mm |
| Amount of Tools | 8/optional | 8/optional |
| Thickness of Work Piece (Al, Cu) | 0.5-4.5mm | 0.5-6mm |
| Thickness of Work Piece (C.S) | 0.5-4mm | 0.5-6mm |
| Thickness of Work Piece (SS) | 0.5-3mm | 0.5-4mm |

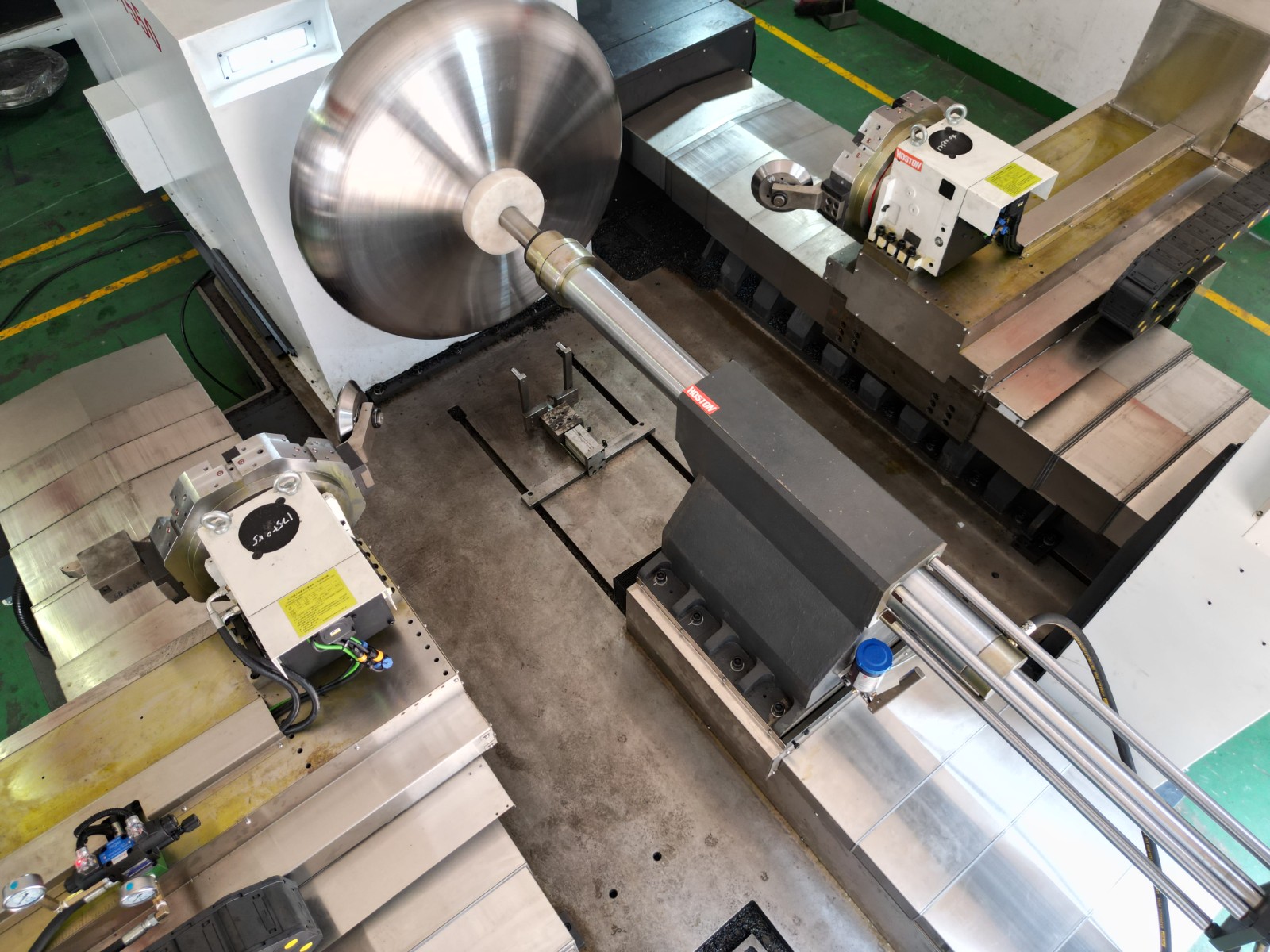

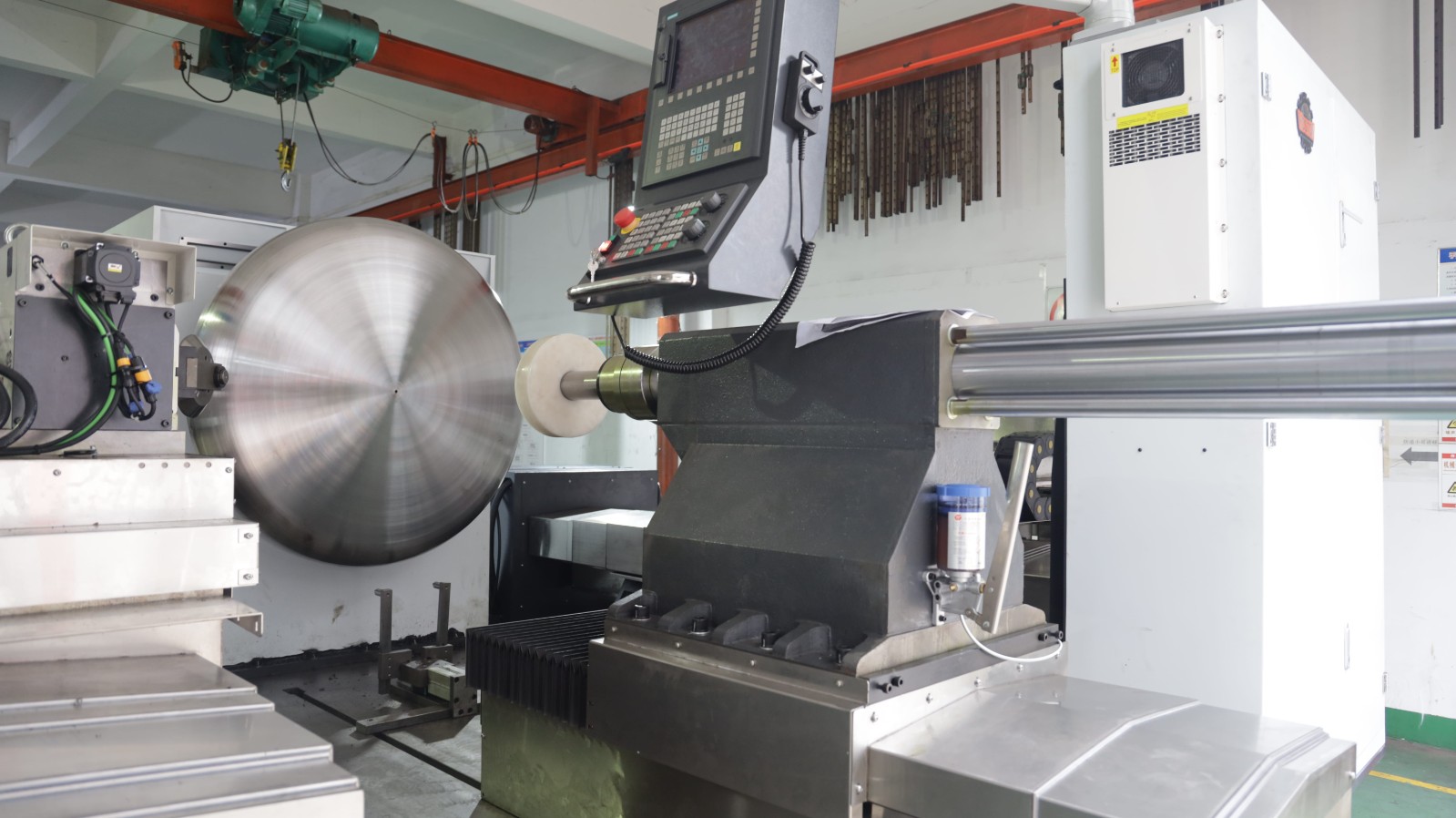

Double Slides & Double Rollers Compressive Spinning: Built with high-rigidity double slides for powerful compressive forming on thick materials
Synchronized & Staggered Spinning: Supports both synchronizing and stagger spinning modes to optimize production cycle and surface finish
Multi-Axis / Multi-Channel CNC System: Advanced CNC control enables high-precision common and strong spinning for complex geometries
Heavy-Duty Capacity: Processes sheet materials up to 1550mm in diameter, with thickness capacities up to 6mm (Al/Cu/C.S) and 4mm (Stainless Steel)
8-Position Tool Turret: Standard 8-tool position layout (optional configurations) ensures seamless multi-process automated operations
The machine body is extremely rigid and runs with remarkable stability. It produces workpieces with superior surface finish and excellent dimensional consistency, significantly boosting our production efficiency.
Excellent product, easy to use, and the support team was very responsive. Very satisfied with our purchase.
