Specification | Model |
C6246V | |
Swing over bed | 460mm(18”) |
Swing over cross slide | 270mm(10-3/4’‘) |
Swing in gap diameter | 690mm (27-1/8’‘) |
Distance between centers | 1000mm(40”) |
Valid length of gap | 165mm(6-1/2”) |
Width of bed | 300mm(11-13/16”) |
Spindle nose | D1-6 |
Spindle bore | 58mm(2-1/4”) |
Taper of spindle bore | No.6 Morse |
Range of spindle speed | 12 changes, 25 〜2000r/min |
Compound rest travel | 128mm(5”) |
Cross slide travel | 285mm(11-1/4”) |
Max. section of tool | 25x25mm(1” x1’’) |

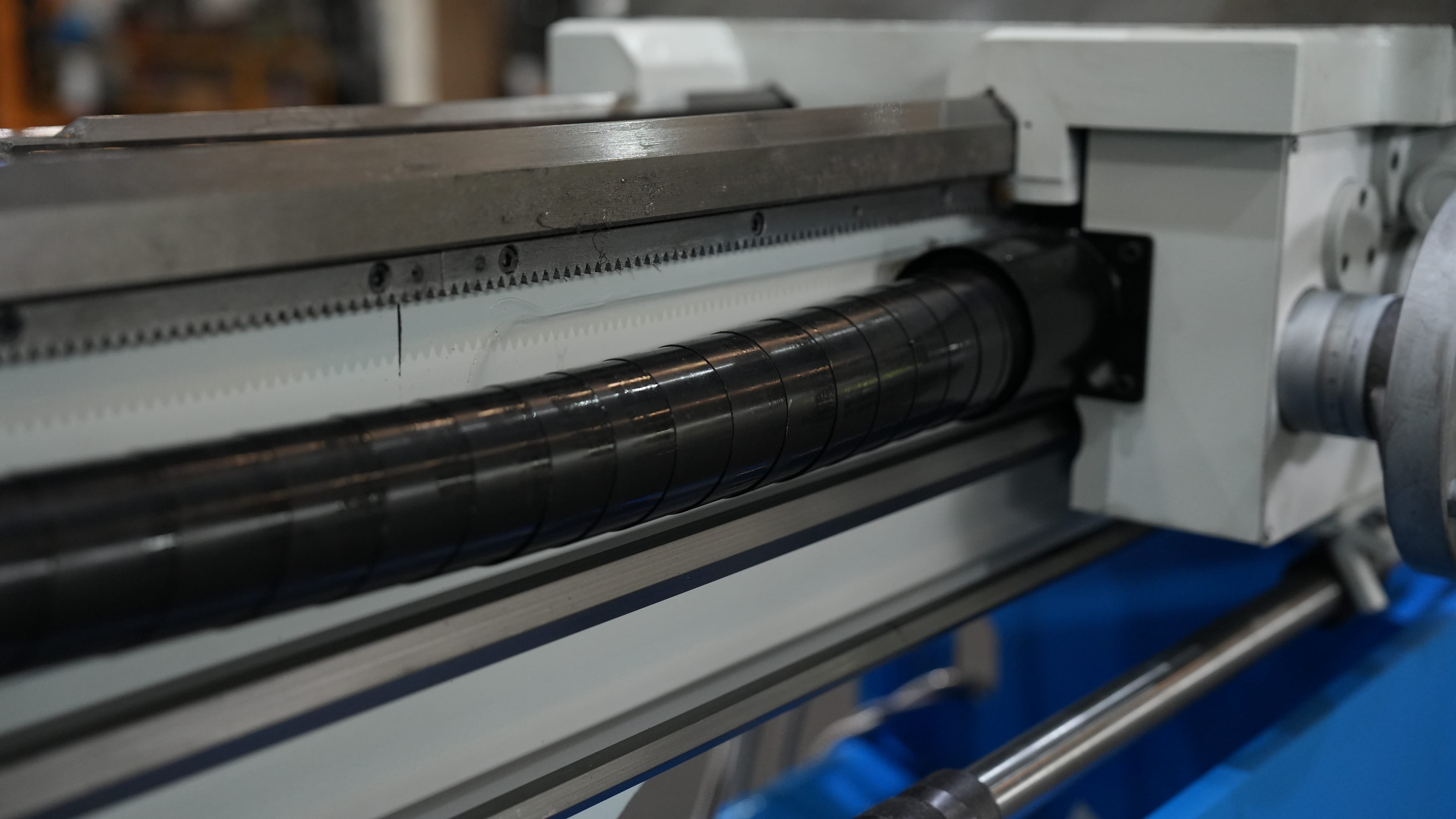

Lead screw thread | 6mm or 4T.P.I. |
Longitudinal feeds range | 42 kinds, 0.031 ～1.7mm/rev (0.0011” ～0.0633”/rev) |
Cross feeds range | 42 kinds, 0.014 ～0.784mm/rev (0.00033” ～0.01837”/rev) |
Threads metric pitches | 41 kinds, 0.1 ～14mm |
Threads imperial pitches | 60kinds，2 ～112T.P.I. |
Threads diametral pitches | 50kinds,4 〜112DP |
Threads module pitches | 34 kinds, 0.1 〜7MP |
Quill diameter | 60mm(2-5/16’’) |
Quill travel | 130mm(5”) |
Quill taper | No.4 Morse |
Main motor power | 7.5kW(7.5HP)3PH |
Coolant pump power | 0.1kW(1/8HP)3PH |
Overall dimension(LxWxH) | 220x108x137cm |
Packing size(LxW H) | 225x112x162cm |
Net weight | 1645kg |
Gross weight | 1910kg |
Rigid cast iron construction delivers excellent stability and vibration resistance for long-term machining accuracy.
Provides ample machining capacity for shafts, sleeves and various medium-sized workpieces.
Machines workpieces up to 690mm in diameter, offering greater flexibility for large parts.
Allows larger bar stock to pass through the spindle for improved machining efficiency.
Delivers reliable cutting power for stable performance in demanding machining applications.
Supports metric, imperial, module and diametral threads for versatile machining tasks.
Ideal for turning, facing, boring, drilling and thread cutting in workshops and industrial manufacturing.
