Engine Lathe
$5,000-20,000 Get a quote

CY series High Speed Precision Lathe

Model: C6260Y

Scan the QR code

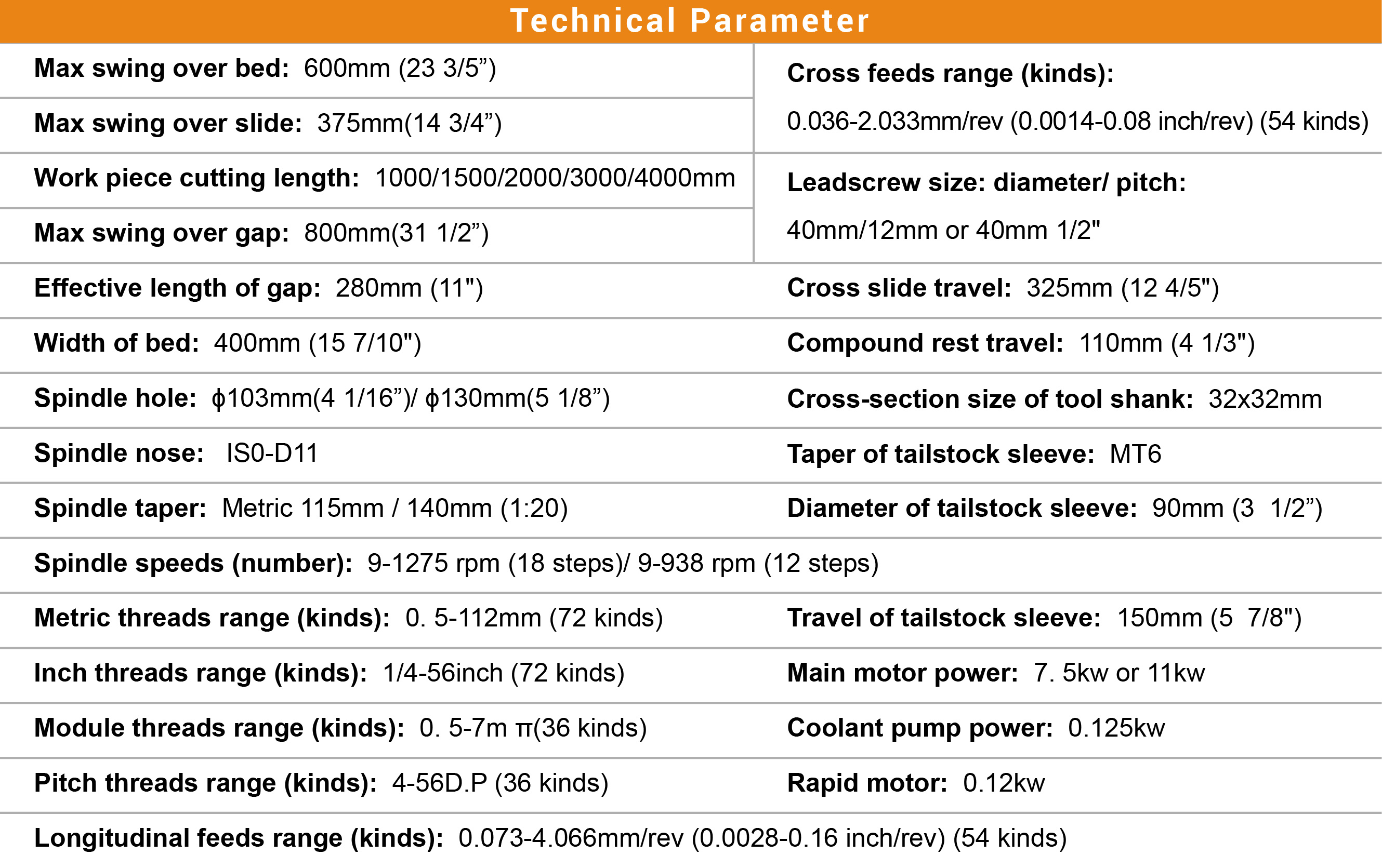

MODEL



C6260Y

Max swing over bed

600mm (23 3/5”)

Max swing over slide

375mm(14 3/4” )

Workpiece cutting length

1000mm, 1500mm, 2000mm. 3000mm.4000mm

Max swing over gap

800mm(31 1/2”)

Effective length of gap

280mm (11")

Bed width

400mm (15 7/10")

Spindle hole

ɸ103mm(4 1/16”)/ ɸ130mm(5 1/8”)

Spindle nose

 IS0-D11

Spindle taper

Metric 115mm / 140mm (1:20)

Spindle speeds (number)

9-1275 rpm (18 steps)/ 9-938 rpm (12 steps)

Metric threads range (kinds)

0. 5-112mm (72 kinds)

Inch threads range (kinds)

1/4-56inch (72 kinds)

Module threads range (kinds)

0. 5-7m π(36 kinds)

Pitch threads range (kinds)

4-56D.P (36 kinds)

Longitudinal feeds range (kinds)

0.073-4.066mm/rev (0.0028-0.16 inch/rev) (54 kinds)

Cross feeds range (kinds)



0.036-2.033mm/rev (0.0014-0.08 inch/rev) (54 kinds)

Rapid traverse speed

5m/min (16.4 ft/min)

Leadscrew size: diameter/ pitch

40mm/12mm or 40mm 1/2"

Cross slide travel

325mm (12 4/5")

Compound rest travel

110mm (4 1/3")

Cross-section size of tool shank

32mm X 32mm

Taper of tailstock sleeve

MT6

Diameter of tailstock sleeve

90mm (3  1/2”)

Travel of tailstock sleeve

150mm (5  7/8")

Main motor power

7. 5kw or 11kw

Cooling bump motor

0.125kw

Rapid motor

0.12kw


Description

CY series High Speed Precision Lathe


CY series High Speed Precision Lathe


CY series High Speed Precision Lathe
