Engine Lathe
$6,000-8,000 Get a quote

CDB series High Speed Precision Lathe

Model: CD6260B

Scan the QR code

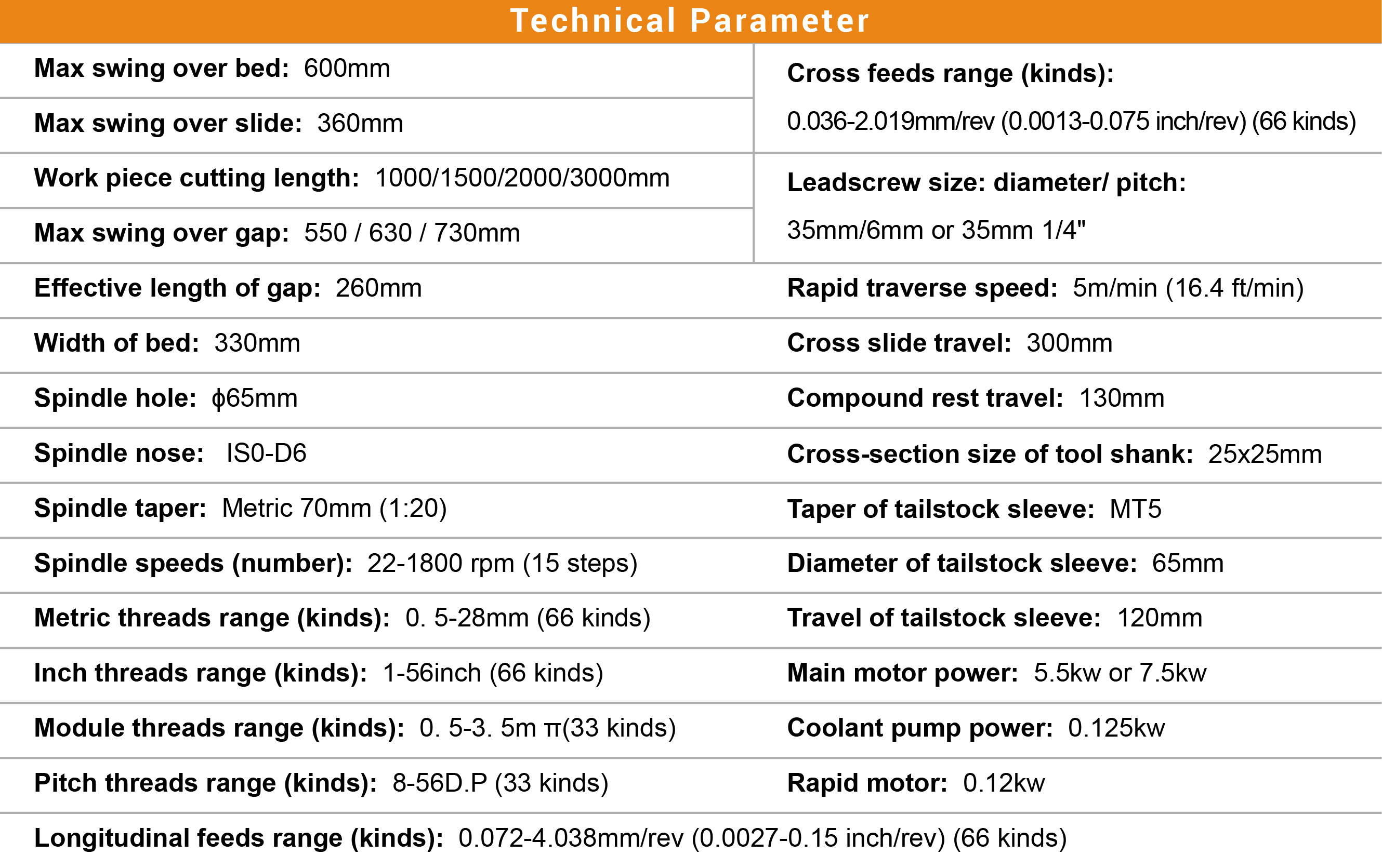

Specification

CD6260B

Max.swing over bed

Φ600mm

Max.swing over cross slide

Φ360mm

Max.swing over gap

Φ730mm

Effective length of gap

260mm

Center Distance

1000mm/1500mm/2000mm/3000mm

Bed Width

330mm

Spindle hole

B:Φ65mm,C: Φ80mm

Spindle nose

B:ISO-D6,C:ISO-D8

Spindle speed(Number)

B:20-1800rpm(15steps) C:/24-1600rpm(15steps)

Longitudinal feeds range

66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev)

Cross feeds range

66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev)

Metric threads range

66kinds 0.5-28

Inch threads range

66kinds 1-56inch

Module threads range

33kinds 0.5-3.5mπ

Diametric threads range

33kinds 8-56D.P

Max.travel of top slide

130mm

Max.travel of cross slide

300mm

Max.size of tool shank

20×20mm/25×25mm

Dia.of tailstock sleeve

Φ65mm

Taper of tailstock sleeve

MT5

Max.travel of tailstock

120mm

Main drive motor

5.5kw or 7.5kw

Rapid traverse motor

250w

Coolant pump motor

125w

Packing size

1000mm:2420mm×1150mm×1800mm 1500mm:2920mm×1150mm×1800mm 2000mm:3460mm×1150mm×1800mm 3000mm:4720mm×1150mm×1800mm

N.W/G.W

1000mm:1560/2210kgs 1600/2250kgs 1640/2290kgs

1500mm:1770/2410kgs 1830/2470kgs 1870/2530kgs

2000mm:2010/2780kgs 2070/2820kgs 2130/2860kgs

3000mm:2400/3200kgs 2460/3260kgs 2580/3400kgs


Description

CDB series High Speed Precision Lathe


CDB series High Speed Precision Lathe


CDB series High Speed Precision Lathe
