Hydraulic Ironworker
$8,500-9,500 Get a quote

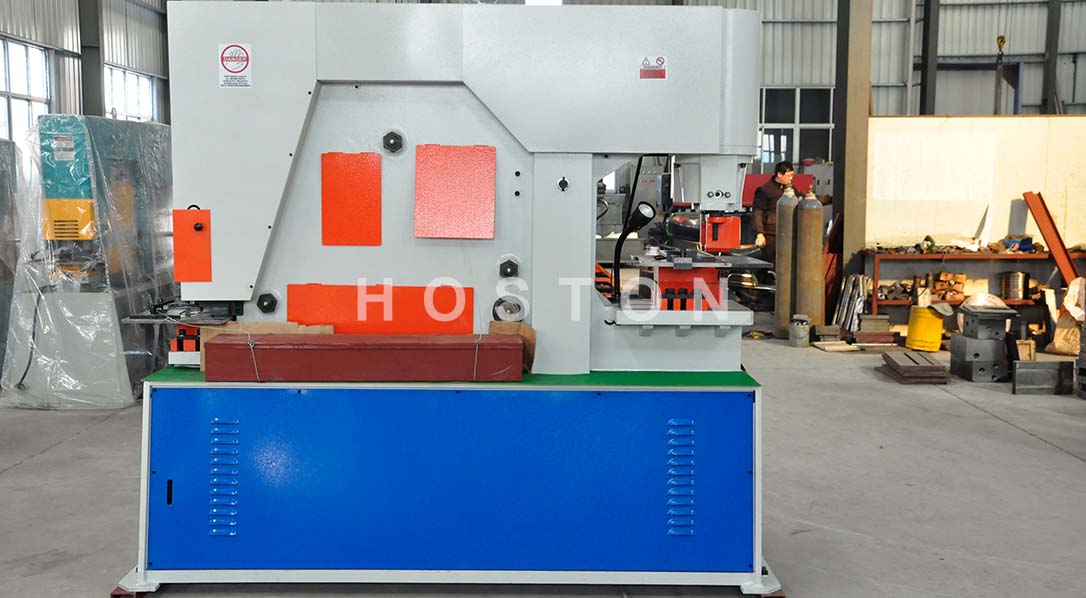

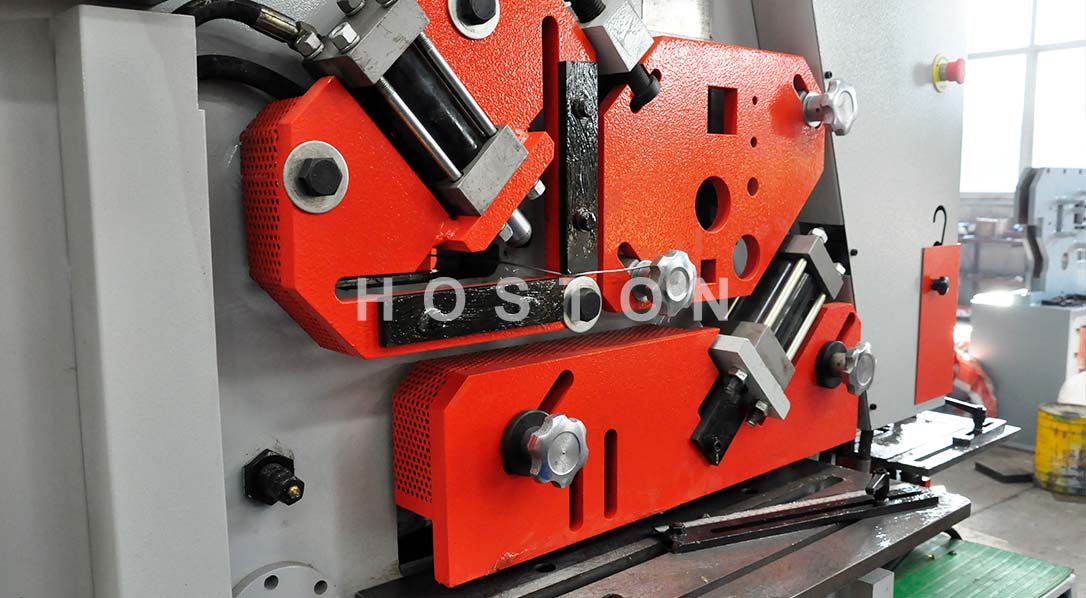

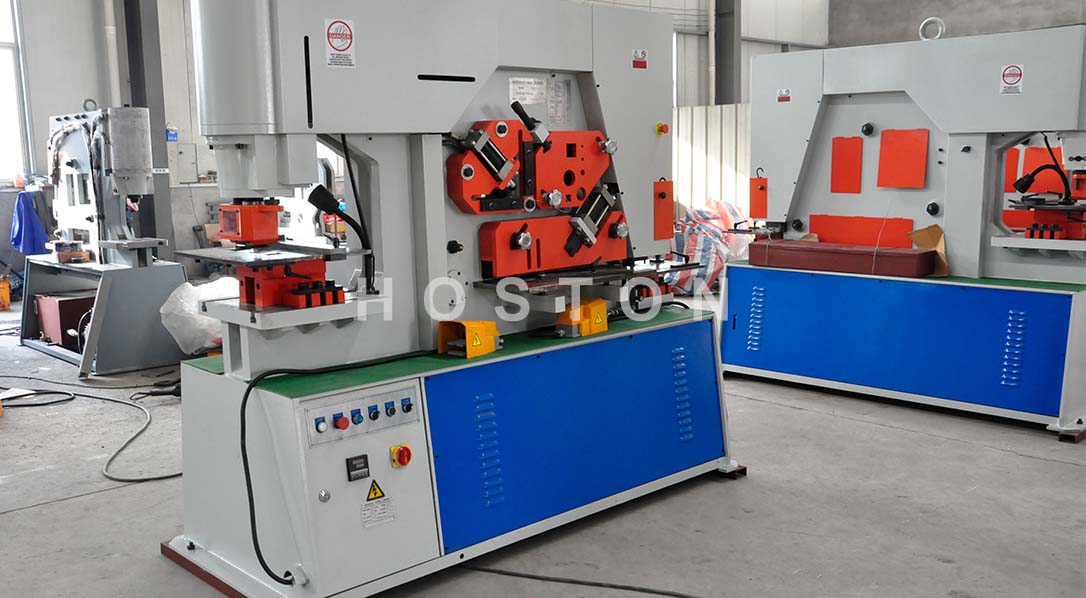

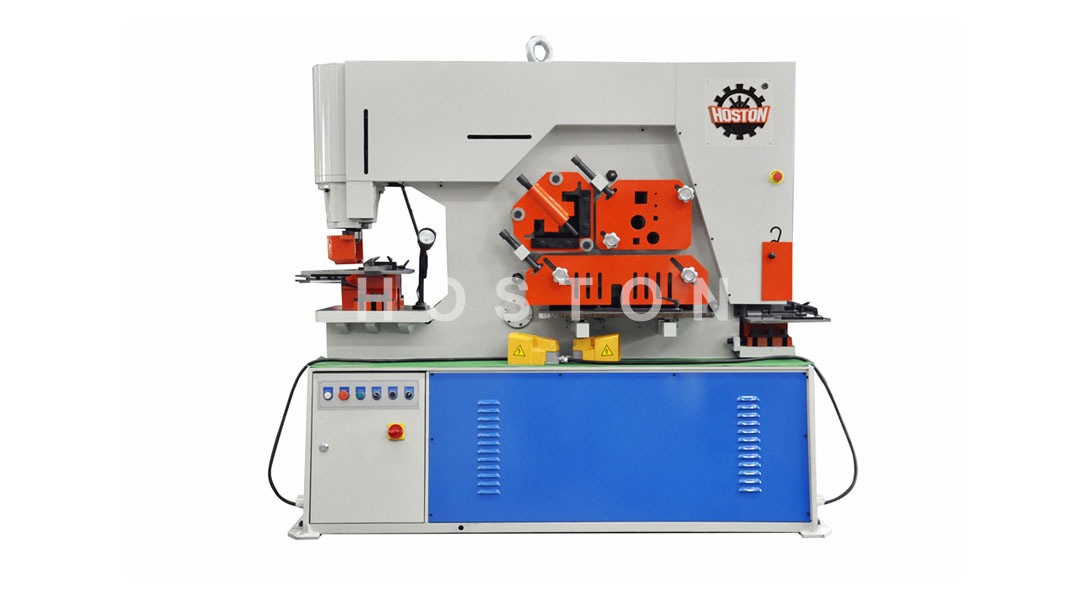

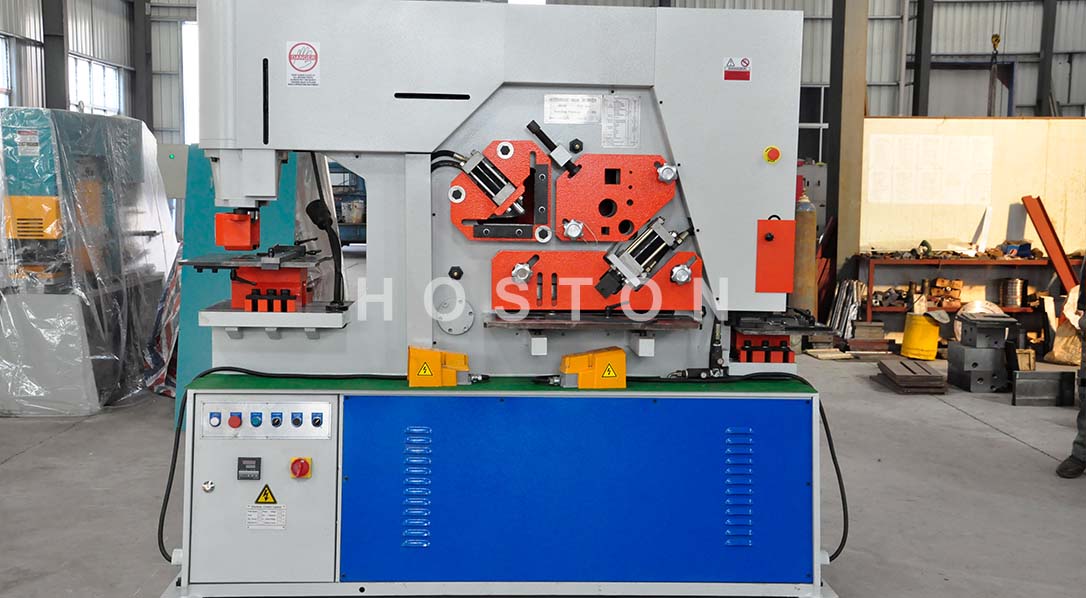

Double Cylinder Hydraulic Ironworker

Model: HIW-120 Series

Scan the QR code

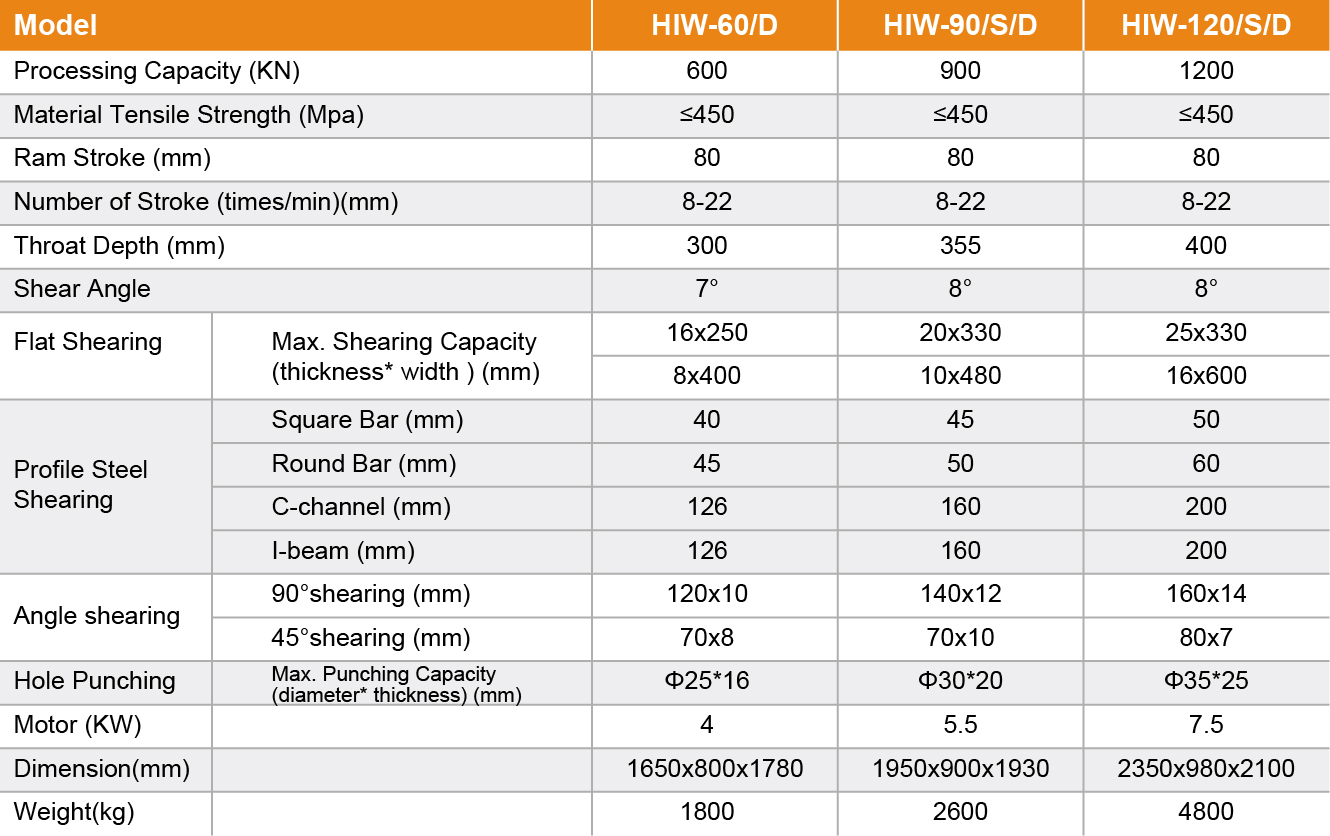

Model

HIW-60/D

HIW-90/S/D

HIW-120/S/D

Processing Capacity(KN)

600

900

1200

Material Tensile Strength(Mpa)

450

450

450

Ram Stroke(mm)

80

80

80

Number of Stroke(times/min)(mm)

8-22

8-22

8-22

Throat Depth(mm)

300

355

400

Shear Angle

7°

8°

8°

Flat Shearing

Max.Shearing Capacity(thickness*width)(mm)

16x250

20x330

25x330

8x400

10x480

16x600

Profile Steel Shearing

Square Bar(mm)

40

45

50

Round Bar(mm)

45

50

60

C-channel(mm)

126

160

200

I-beam(mm)

126

160

200

Angle Shearing

90°shearing(mm)

120x10

140x12

160x14

45°shearing(mm)

70x8

70x10

80x7

Hole Punching

Max.Punching Capacity(diameter*thickness)(mm)

Φ25*16

Φ30*20

Φ35*25

Motor(KW)


4

5.5

7.5

Dimension(mm)


1650x800x1780

1950x900x1930

2350x980x2100

Weight(kg)


1800

2600

4800


Description

Double Cylinder Hydraulic Ironworker


Double Cylinder Hydraulic Ironworker


Double Cylinder Hydraulic Ironworker


Double Cylinder Hydraulic Ironworker
