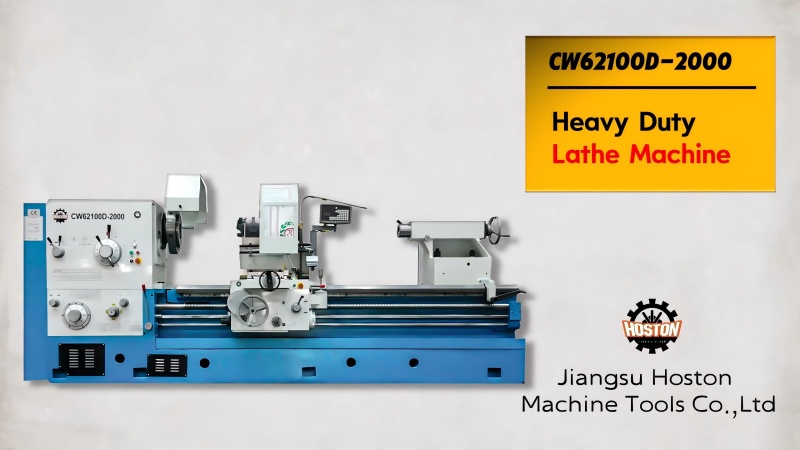

Hoston CW62100D-2000: Heavy Duty Lathe Machine Elevating Precision and Performance

Ideal for Heavy Industry
Designed especially for demanding sectors like energy, heavy equipment, shipbuilding, and aerospace, the CW62100D-2000 offers unmatched capability in high-speed, high-volume turning tasks. Its hardened bed structure, powerful spindle, and wide feed options equip fabrication professionals with a dependable and rugged tool for their toughest projects.

Powerful Specifications and Robust Design
The CW62100D-2000 offers a 600 mm center height and an impressive 2,000 mm center distance, accommodating large workpieces with maximum stability. The machine’s robust bed width of 755 mm and a massive 130 mm spindle bore underpin its high-strength capability—handling the toughest ferrous and non-ferrous materials. Equipped with a 22 kW main motor and rapid feeds up to 3,740 mm/min (Z-axis) and 1,870 mm/min (X-axis), the lathe allows operators to execute heavy cutting tasks quickly and efficiently .

Superior Feed & Threading Performance
Offering a wide range of feed rates—longitudinal from 0.1–12 mm/rev (56 steps) and transverse from 0.05–6 mm/rev (56 steps)—alongside 44 metric, 31 inch, 45 module, and 25 pitch thread settings, the CW62100D-2000 ensures users can tackle complex threading, taper, and precision turning operations with ease .

Versatile Sleeves and Taper Turning
The lathe’s systematic design includes a tailstock sleeve (Ø140 mm, 300 mm travel with Morse No. 6 taper) and both powered and compound top slides, enabling smooth short- and long-taper turns, drilling, boring, and trepanning. This versatility makes the machine ideal for varying industrial tasks—from repurposing large shafts to deep-hole drilling .

Comprehensive Accessories Package
To meet heavy-industry demands, Hoston equips the CW62100D-2000 with a four-jaw chuck (Ø1,000 mm), steady and follow rests for added support, dead/revolving centers, coolant pump, tool lighting, and essential tools. Optional upgrades such as chasing dial devices and taper attachments offer enhanced user customization .

Conclusion
Hoton’s CW62100D-2000 heavy-duty lathe is a testament to the brand’s growing ambition and commitment to high-end industrial machinery. With its flawless combination of power, precision, and flexibility, this machine is set to empower machinists and manufacturers across the globe.
