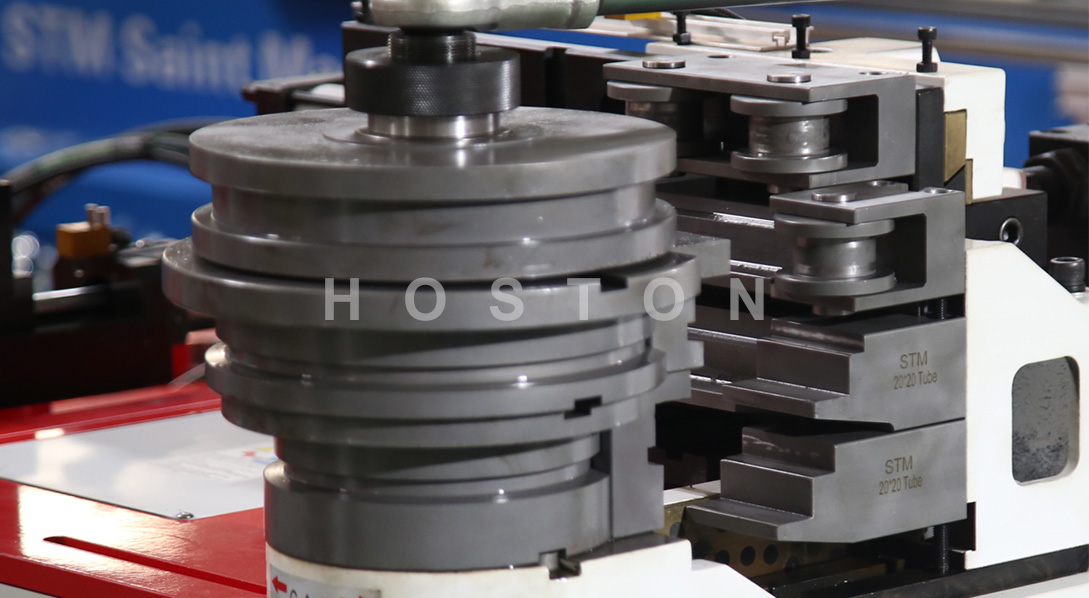

Automatic Hybrid Tube Bender
| Specification | ||
| Mold | DW-38CNC-4A-3S Servo Bend | |
| Max.Tube o.d. Bending Capacity | 38.1mm | |
| Max. Tube Wall Thickness | 2.0 | |
| CLR | 25-180mm | |
| Max. Bending Radius Difference S1-S2-S3 | 80mm | |
| Max.Bending Angle | 190° | |
| Max.Mandrel working Distance | 2500mm | |
| Processing Speed | Tube Feeding Speed | 800mm/sec |
| Tube Rotation Speed | 300°/sec | |
| Tube Bending Speed | 90°/sec | |
| Repeatability | Tube Feeding Precision | ±0.1mm |
| Tube Rotation Precision | ±0.1° | |
| Tube Bending Precision | ±0.1° | |
| Total Motor Power | 12.5kw | |
| Overall Weight | 3200mm | |
| Operating Height | 1400mm | |
| Machine Length | 5500mm | |
| Machine Width | 1320mm | |
| Machine Height | 1600mm | |
