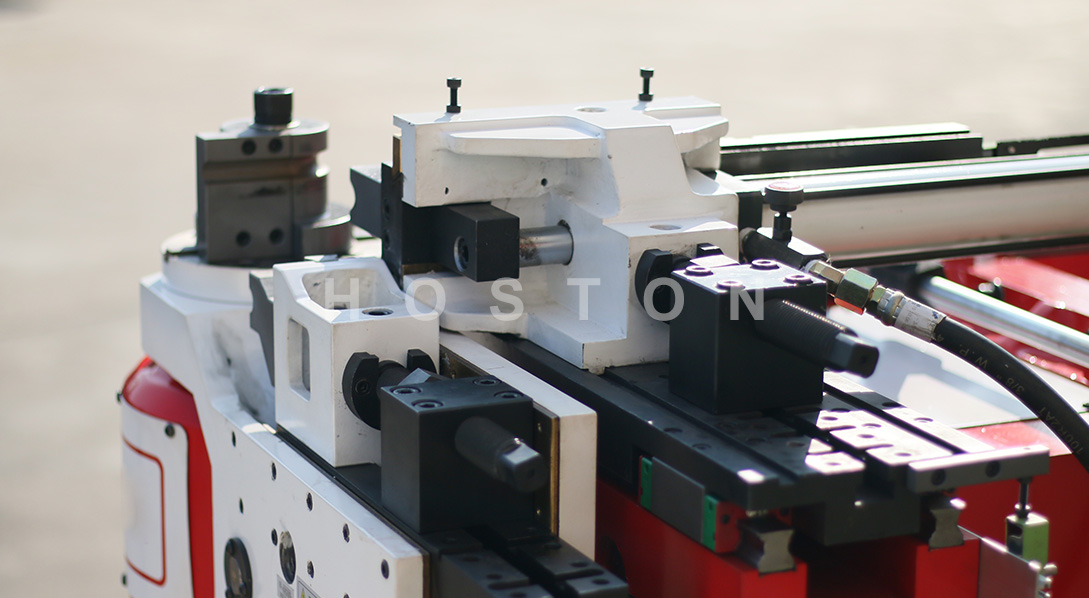

Hybrid CNC Pipe Bending Machine
| Specification | ||||
| Mold | DW-38CNC-3A Servo Bend | DW-50CNC-3A Servo Bend | DW-65CNC-3A Servo Bend | |
| Max.Tube o.d. Bending Capacity | 38.1mm | 50.8mm | 60mm | |
| Max. Tube Wall Thickness | 2.0 | 2.0 | 2.5 | |
| CLR | 25-180mm | 35-200mm | 45-280mm | |
| Max.Bending Angle | 190° | 190° | 190° | |
| Max.Mandrel working Distance | 2300mm | 2600mm | 3000mm | |
| Processing Speed | Tube Feeding Speed | 750mm/sec | 750mm/sec | 600mm/sec |
| Tube Rotation Speed | 320°/sec | 320°/sec | 240°/sec | |
| Tube Bending Speed | 90°/sec | 75°/sec | 60°/sec | |
| Repeatability | Tube Feeding Precision | ±0.1mm | ±0.1mm | ±0.1mm |
| Tube Rotation Precision | ±0.1° | ±0.1° | ±0.1° | |
| Tube Bending Precision | ±0.1° | ±0.1° | ±0.1° | |
| Total Motor Power | 11kw | 15.5kw | 21kw | |
| Overall Weight | 2000kg | 2200kg | 3000kg | |
| Machine Length | 4400x1200x1600mm | 4800x1200x1600mm | 5200x1250x1600mm | |
