| Parameter | WLH-SRS2550 |
|---|---|
| Max. Diameter of Material | 2550mm |
| Main Motor Power | 55kw servo |
| X Travel | 800mm |
| Z Travel | 1300mm |
| Tailstock Force | 120kn |
| Travel of Tailstock | 1200mm |
| Amount of Tools | 8/optional |
| Thickness of Work Piece (Al, Cu) | 1-8mm |
| Thickness of Work Piece (C.S) | 1-6mm |
| Thickness of Work Piece (SS) | 1-4mm |

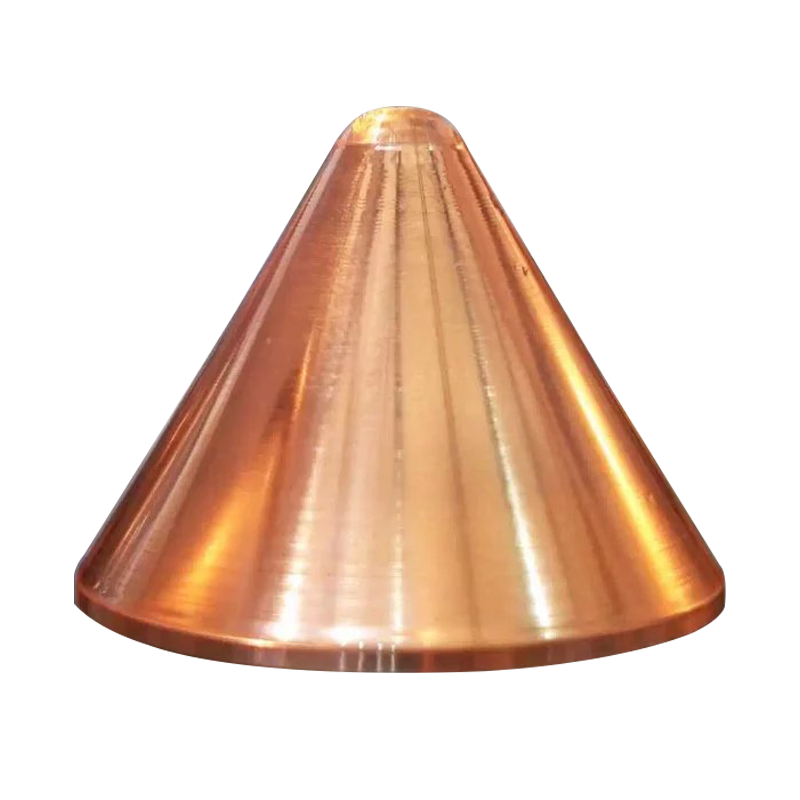

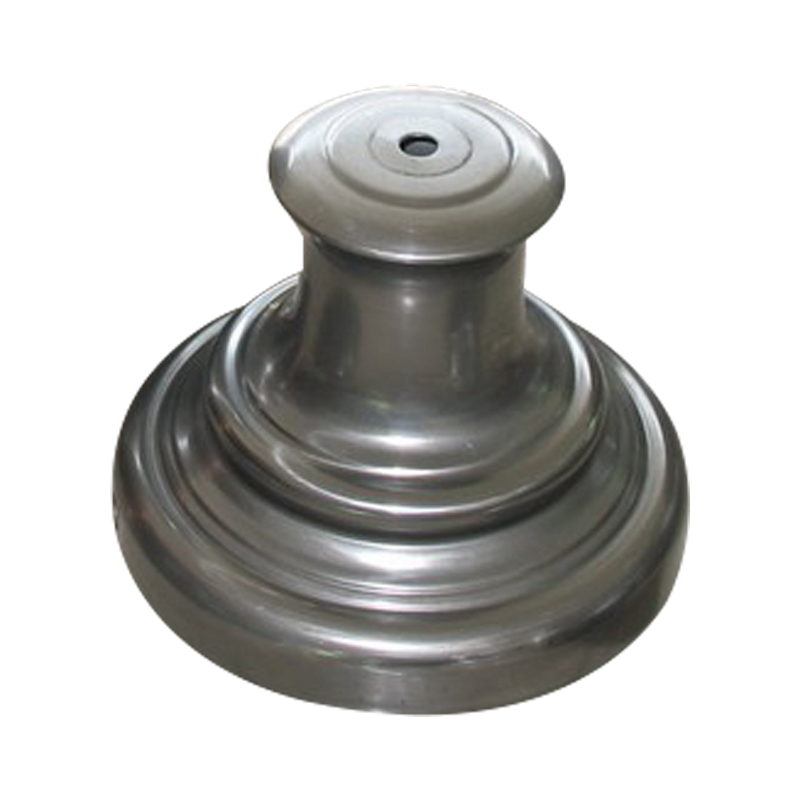

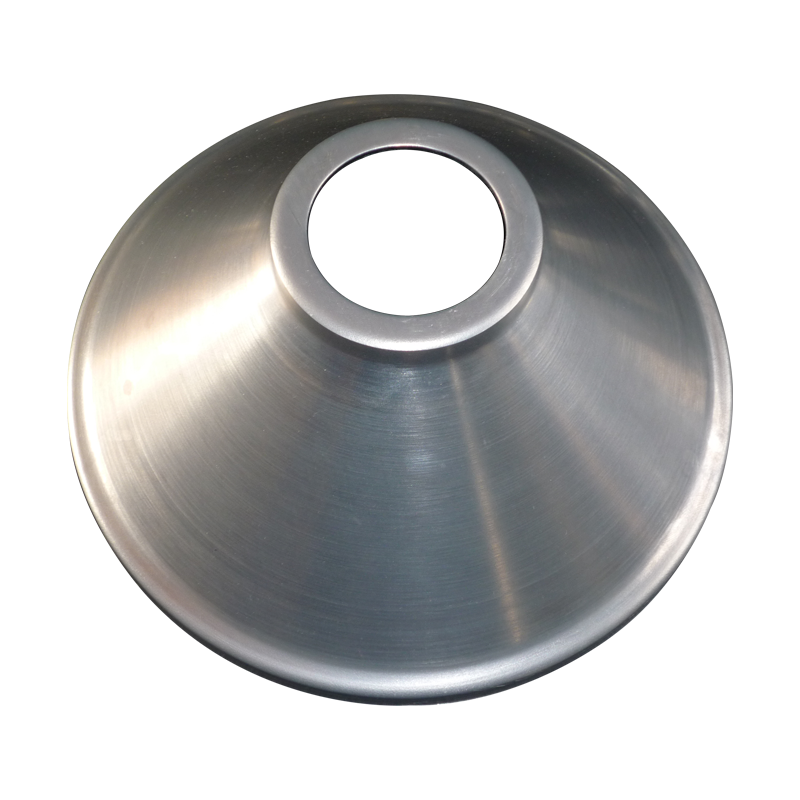

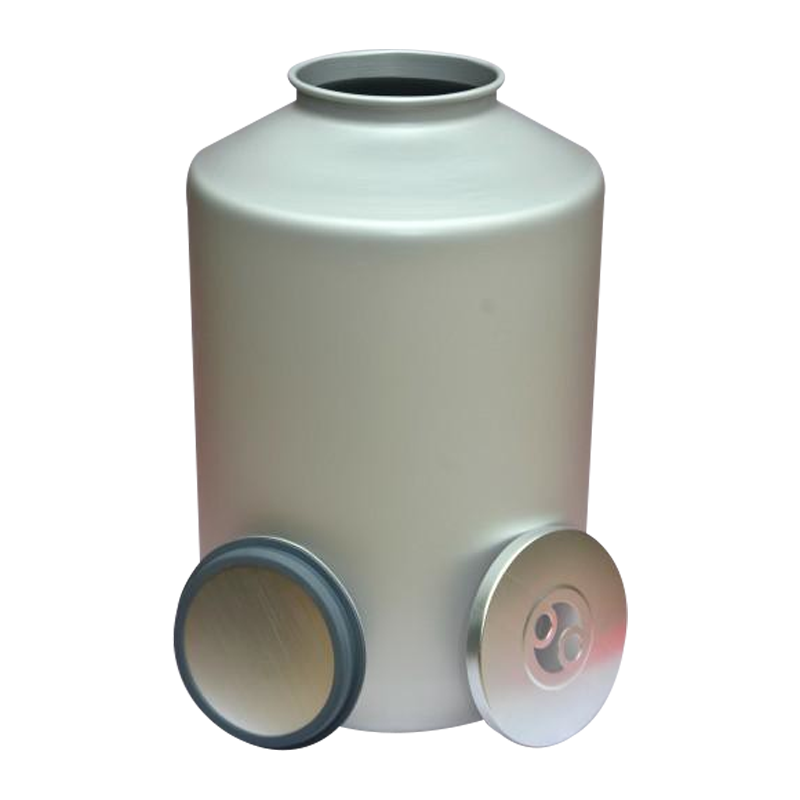

■ Max 2550mm Capacity: Engineered for high-efficiency metal spinning of large-scale components, including lampshades, fan parts, precision dish ends, and antenna reflectors
■ 55kW Servo & 120kN Force: Driven by a high-torque 55kW main servo motor with 120kN tailstock clamping force and 1200mm stroke, guaranteeing high precision and rigid stability during heavy operations
■ Generous Stroke & Flexible Tooling: Features an X-axis travel of 800mm and Z-axis travel of 1300mm, with an optional 8-station tool turret to handle multi-pass complex metal forming in a single setup.
