Single Roller Spinning
Inquire Now
Share

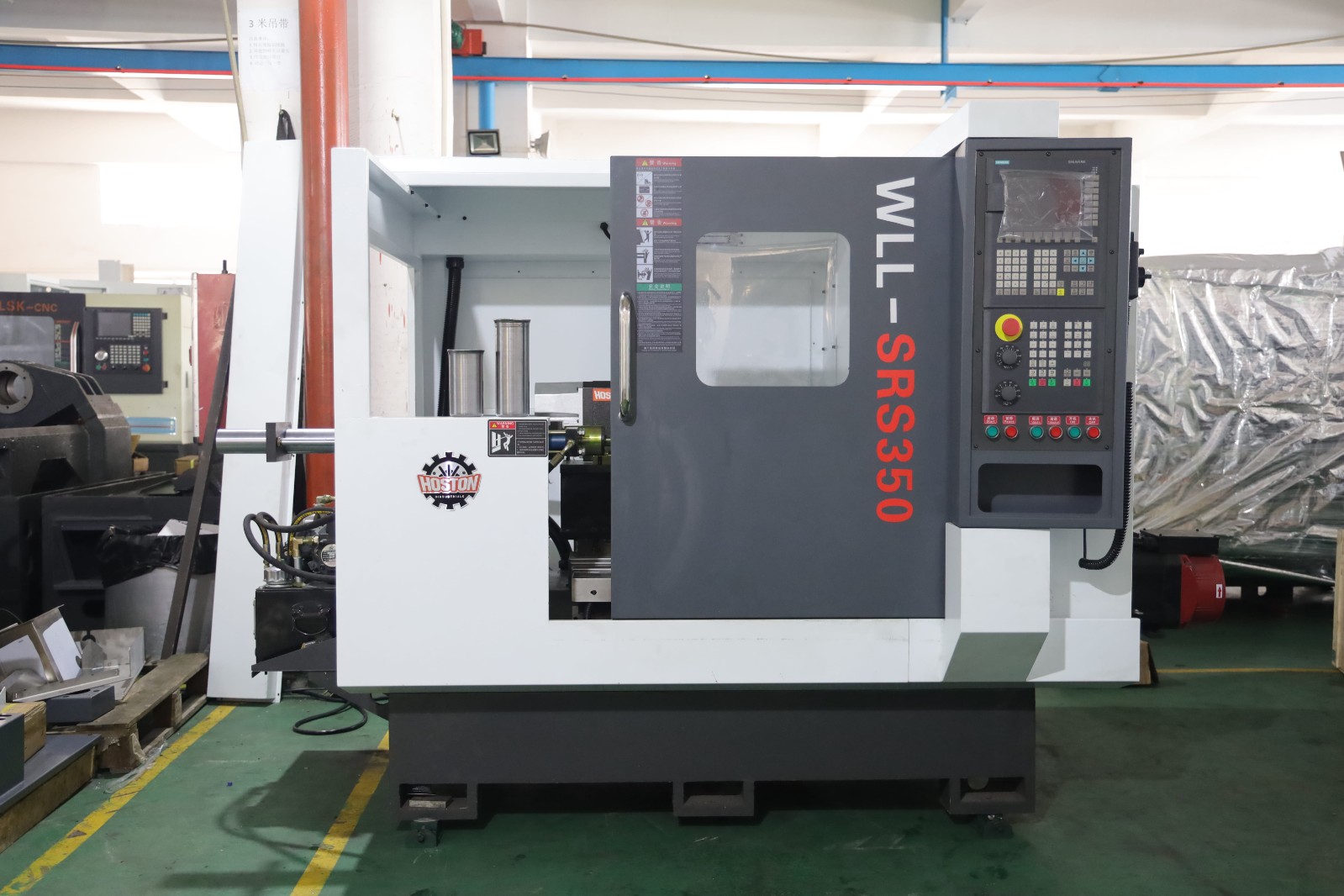

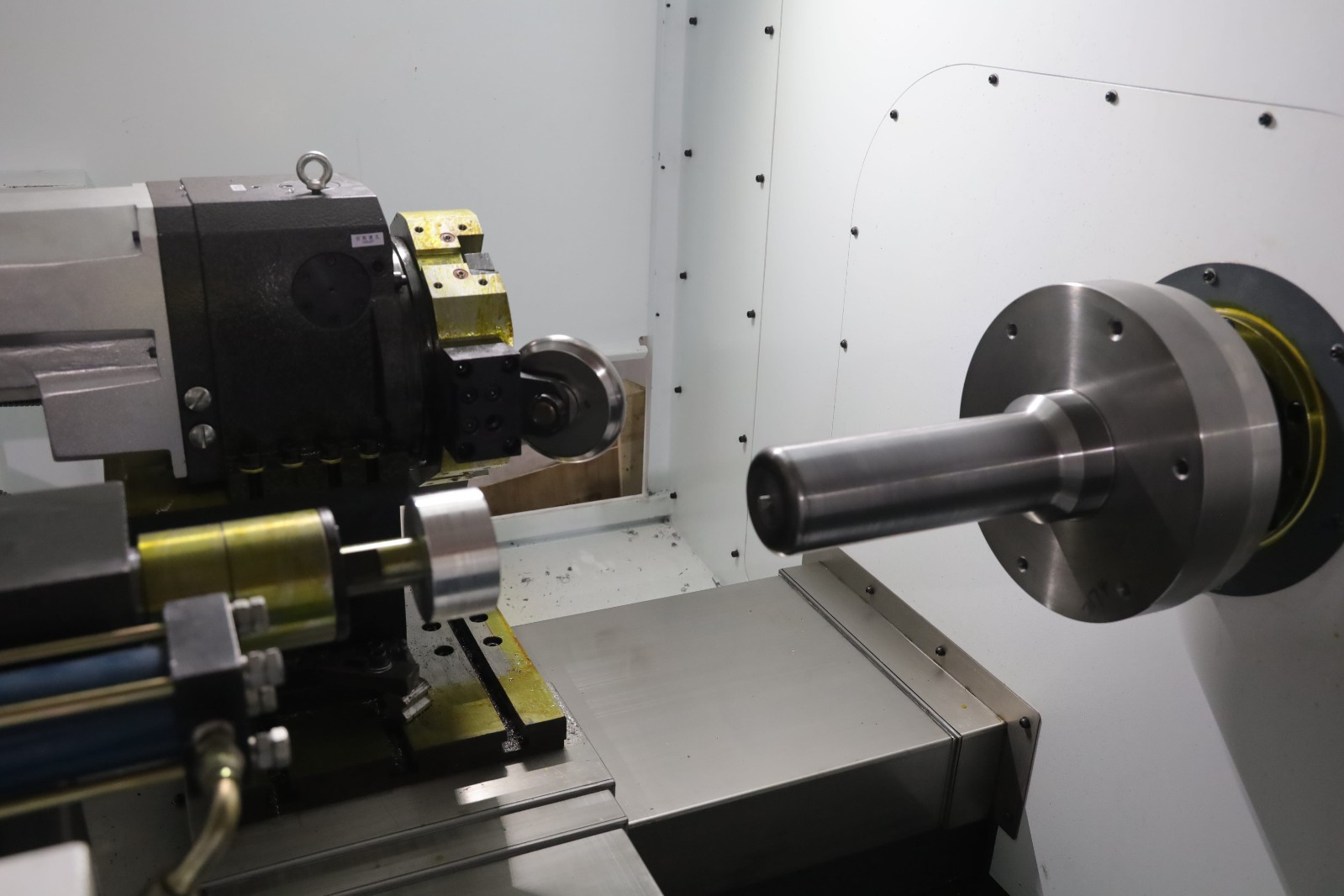

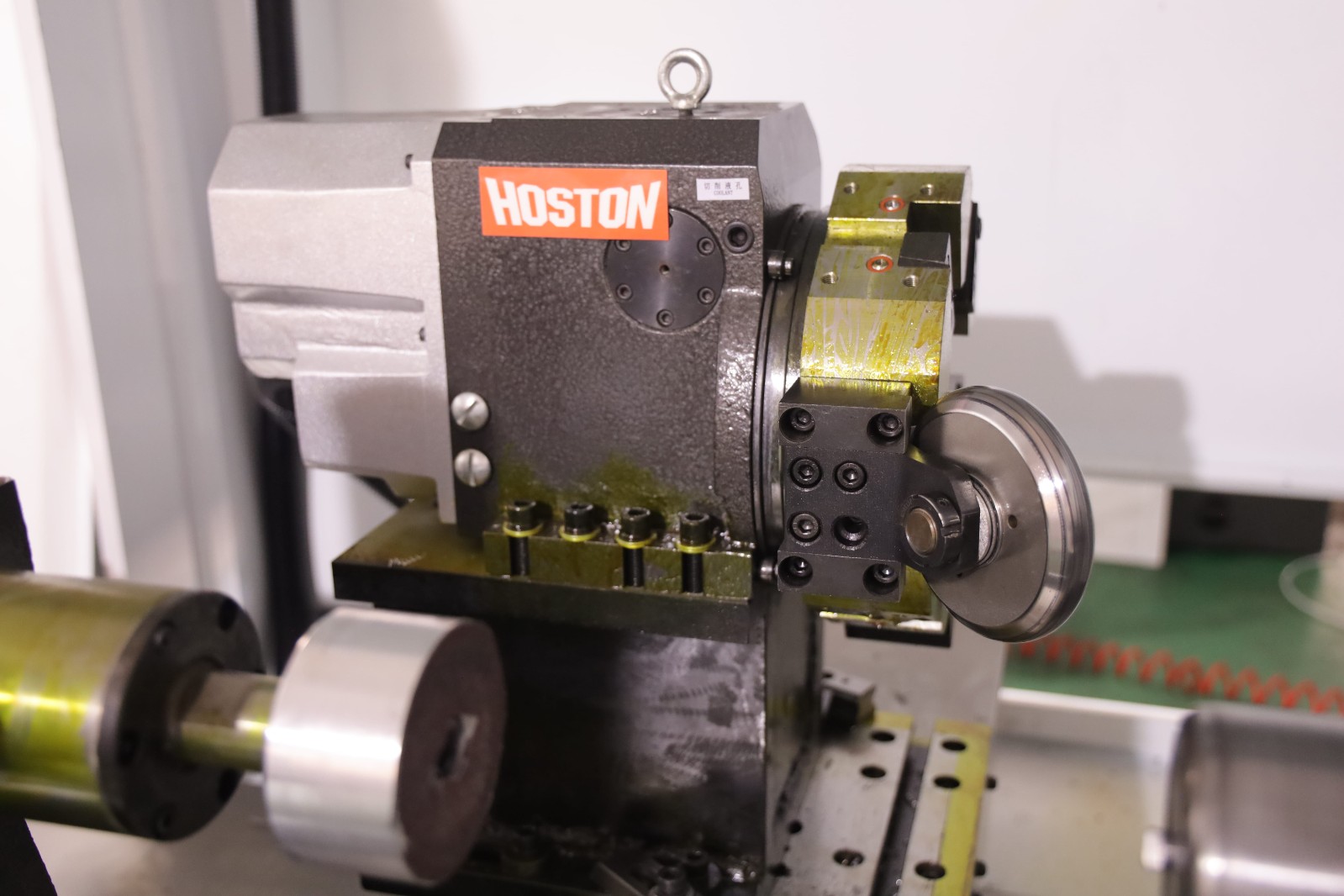

WLL-SRS350 Series

Parameter

WLL-SRS350

Max. Diameter of Material

350mm

Main Motor Power

5.5kw servo

X Travel

300mm

Z Travel

380mm

Spindle Speed

4000rpm

Tailstock Force

10kn

Travel of Tailstock

300mm

Amount of Tools

2+1/optional

Thickness of Work Piece (Al, Cu)

0.5-2mm

Thickness of Work Piece (C.S)

0.5-1.2mm

Thickness of Work Piece (SS)

0.5-1mm


WLL-SRS350 Series WLL-SRS350 Series WLL-SRS350 Series WLL-SRS350 Series
Product Description

The light duty WLL series CNC spinning machine is specially developed to meet the needs of small spinning parts in mobile lighting, commercial lighting, cookware, hardware, handicrafts, air conditioners, automobiles and other industries. It could save labor costs and also affordable.

It could also be equipped with manipulator which could do the automatic loading and unloading.

The machine is very stable with mature technology and now is highly recognized by customers from all over the worlds.


User Comment

Good workmanship, reasonable design and friendly service

Excellent product, easy to use, and the support team was very responsive. Very satisfied with our purchase.
