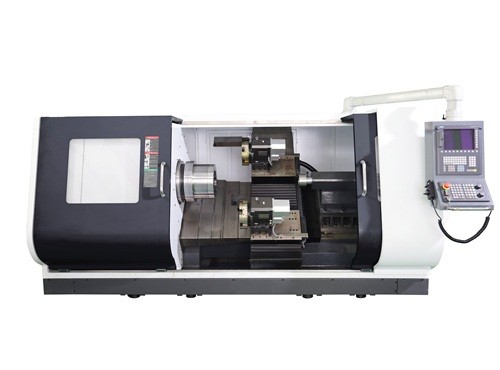

| Parameter | WLN-DRS140 |
|---|---|
| Max tube diameter | 130mm |
| Max length of pipe | 600mm |
| Thickness of aluminum alloy | 3.0mm |
| Thickness of carbon steel | 2.0mm |
| Thickness of stainless steel | 1.5mm |
| Z-axis stroke | 300mm |
| X-axis stroke | 400mm |
| Spindle motor power | 7.5kw servo |
| Spindle speed | 1200rpm |

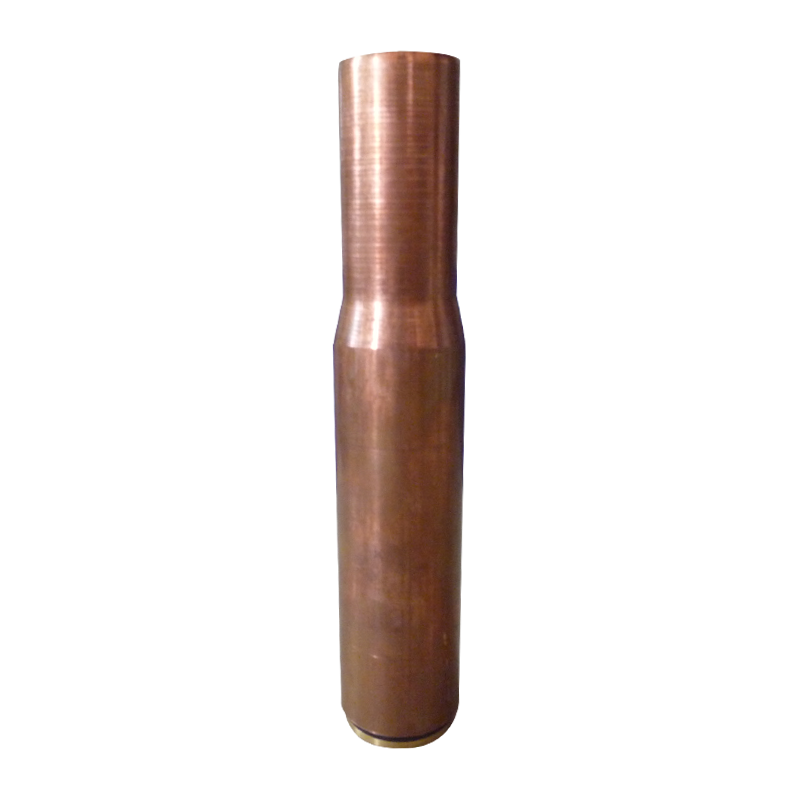

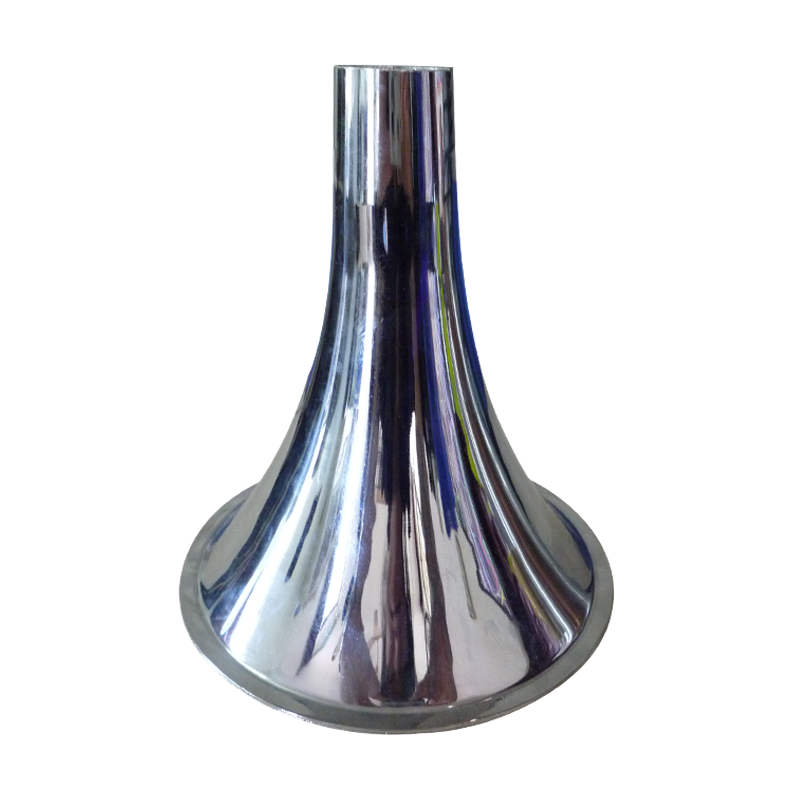

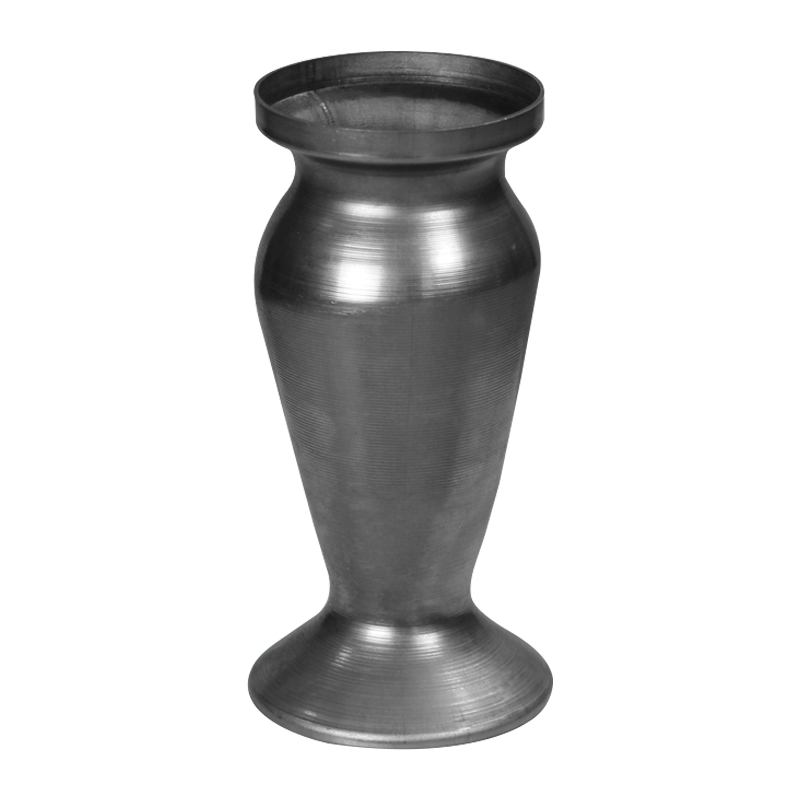

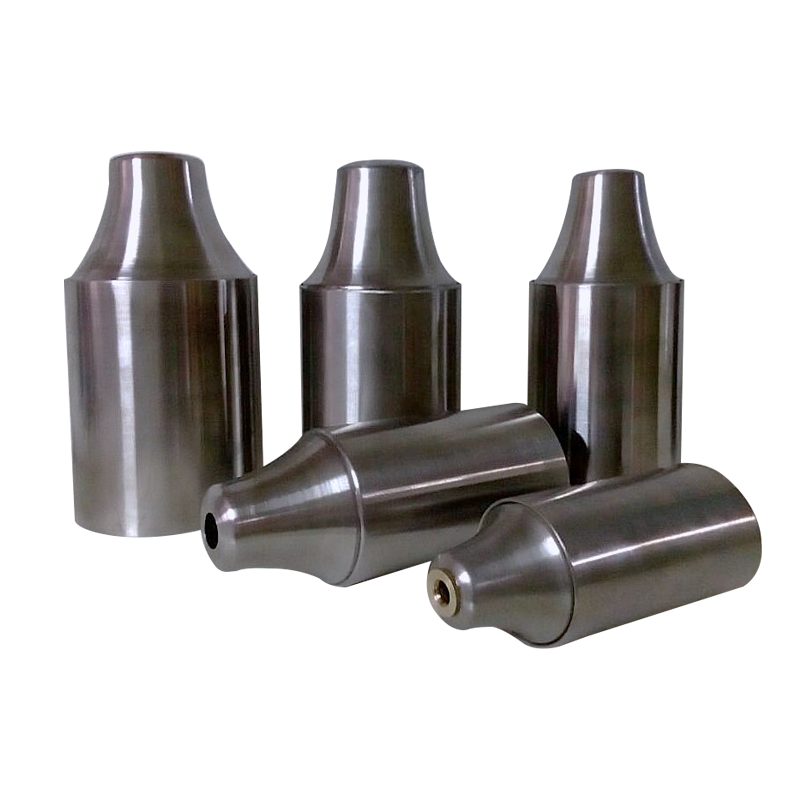

Versatile Industry Applications: Ideal for HVAC components (A/C reservoirs, silencers, filters), aerospace elements (nose cones, jet engine fairings), marine defense (submarine seal rings), and industrial hydraulics (compressor housings, cylinders)
Precision Dual-Axis Motion: Generous Z-axis (300mm) and X-axis (400mm) travel allow accurate contouring for intricate designs
Multi-Material Capability: Reliably handles aluminum, carbon steel, and stainless steel tubing with exceptional repeatability
Excellent equipment with professional technical support.
