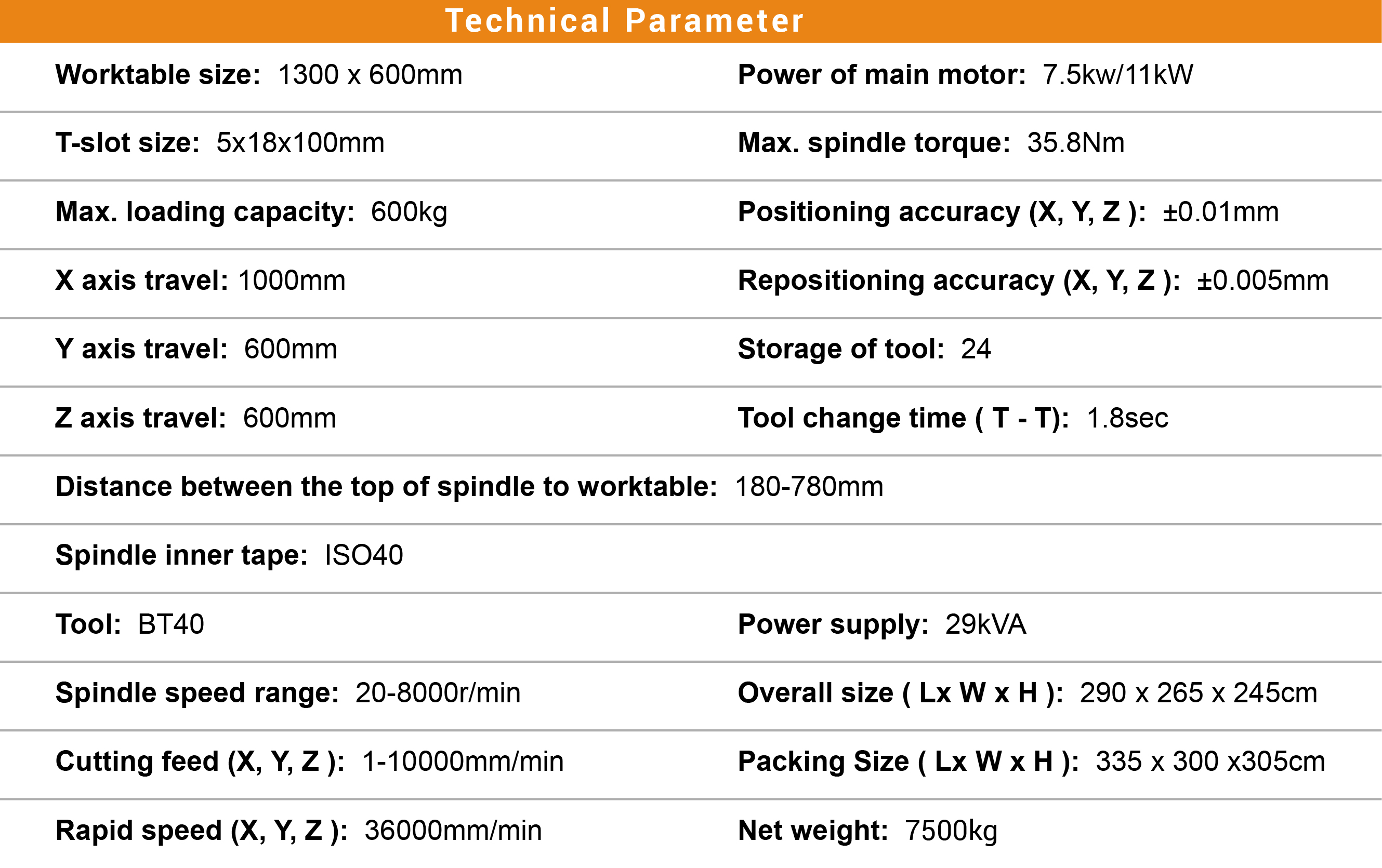

| Parameter Name | Specification |
|---|---|
| Worktable size | 1300 x 600mm |
| T-slot size | 5x18x100mm |
| Max. loading capacity | 600kg |
| X axis travel | 1000mm |
| Y axis travel | 600mm |
| Z axis travel | 600mm |
| Distance between the top of spindle to worktable | 180-780mm |
| Spindle inner tape | ISO40 |
| Tool | BT40 |
| Spindle speed range | 20-8000r/min |
| Cutting feed (X, Y, Z) | 1-10000mm/min |
| Rapid speed (X, Y, Z) | 36000mm/min |
| Power of main motor | 7.5kw/11kW |
| Max. spindle torque | 35.8Nm |
| Storage of tool | 24 |
| Tool change time ( T - T ) | 1.8sec |
| Power supply | 29kVA |
| Overall size ( Lx W x H ) | 290 x 265 x 245cm |
| Packing Size ( Lx W x H ) | 335 x 300 x 305cm |
| Net weight | 7500kg |
■ High rigidity , High reliability, High cutting power
■ Taiwan 24 position tool storage
■ 3-linear guideway
■ Spindle made by Taiwan
