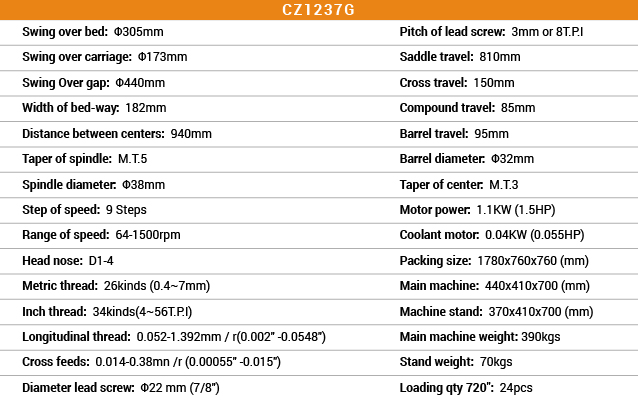

Model

CZ1237G/1 /CZ1337G/1

Main data

Swing over bed

Φ305mm/ Φ330mm

Swing over carriage

Φ173mm/ Φ215mm

Swing Over gap

Φ440mm/ Φ485mm

Width of bed-way

182mm

Distance between centers

940mm

Spindle

Taper of spindle

M.T.5

Spindle diameter

Φ38mm

Step of speed

9 Steps

Range of speed

64~1500rpm

Head nose

D1-4

Thread  and feed  system

Metric thread

26kinds (0.4~7mm)

Inch thread

34kinds(4~56T.P.I)

Longitudinal thread

0.052-1.392mm / r(0.002" -0.0548")

Cross feeds

0.014-0.38mn /r (0.00055" -0.015")

Main lead screw

Diameter lead screw

Φ22 mm (7/8")

Pitch of lead screw

3mmor8T.P.I

Saddle and carnage

Saddle travel

810mm

Cross travel

150mm

Compound  travel

85mm

Tailstock

Barrel travel

95mm

Barrel diameter

Φ32mm

Taper of center

M.T.3

Power

Motor power

1.1KW(1.5HP)

Coolant motor

0.04KW(0.055HP)

Shipment data

Packing size

1780x760x760 (mm)

Main machine

440x410x700 (mm)

Machine stand

370x410x700 (mm)

Main machine weight

390/440kgs

Stand weight

70/75kgs

Loading qty 720"

24pcs
