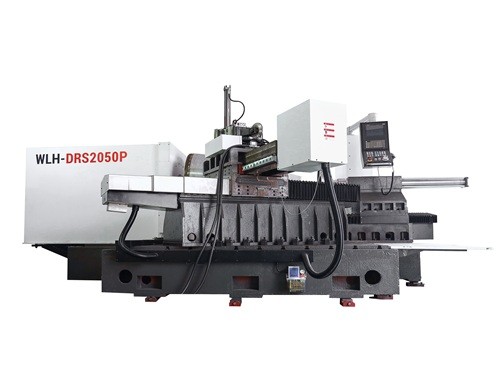

| Parameter | WLH-DRS2050 |
|---|---|
| Max. Diameter of Material | 2050mm |
| Main Motor Power | 55kw servo |
| X Travel | 700mm |
| Z Travel | 1200mm |
| Tailstock Force | 110kn |
| Travel of Tailstock | 1100mm |
| Amount of Tools | 8/optional |
| Thickness of Work Piece (Al, Cu) | 1-8mm |
| Thickness of Work Piece (C.S) | 1-6mm |
| Thickness of Work Piece (SS) | 1-4mm |
Extra-Large Work Capacity: Accommodates material up to 2050mm max diameter with 700mm X-travel and 1200mm Z-travel for large-scale spinning
Robust Power & Clamping: Powered by a 55kW main servo motor with 110kN tailstock force (1100mm travel) ensuring heavy-duty stability
Heavy-Gauge Sheet Capability: Processes metals up to 8mm Al/Cu, 6mm C.S, and 4mm SS, supporting both conventional and shear spinning
Double Slides & Double Rollers: Features synchronized and staggered spinning modes to double efficiency and deliver superior surface finish
Multi-Axis CNC System: Advanced multi-channel CNC control with optional 8-tool station for fully automated complex profile processing
Versatile Industry Application: Engineered for automotive, HVAC ventilation, container/packaging, electric power, and defense sectors
Good workmanship, reasonable design and friendly service
Excellent product, easy to use, and the support team was very responsive. Very satisfied with our purchase.
