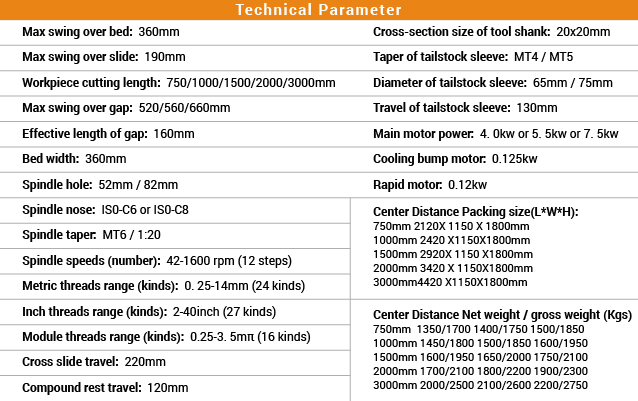

MODEL

C6236C

Max swing over bed

360mm

Max swing over slide

190mm

Workpiece cutting length

750mm, 1000mm, 1500mm, 2000mm. 3000mm

Max swing over gap

520mm

Effective length of gap

160mm

Bed width

360mm

Spindle hole

ɸ52mm /ɸ 82mm

Spindle nose

IS0-C6 or IS0-C8

Spindle taper

MT6 / 1:20

Spindle speeds (number)

42-1600 rpm (12 steps)

Metric threads range (kinds)

0. 25- 14mm (24 kinds)

Inch threads range (kinds)

2-40inch (27 kinds)

Module threads range (kinds)

0.25-3. 5mπ (16 kinds)

Cross slide travel

220mm

Compound rest travel

120mm

Cross-section size of tool shank

20mm X 20mm

Taper of tailstock sleeve

MT4 / MT5

Diameter of tailstock sleeve

65mm / 75mm

Travel of tailstock sleeve

130mm

Main motor power

4. 0kw or 5. 5kw or 7. 5kw

Cooling bump motor

0.125kw

Rapid motor

0.12kw
