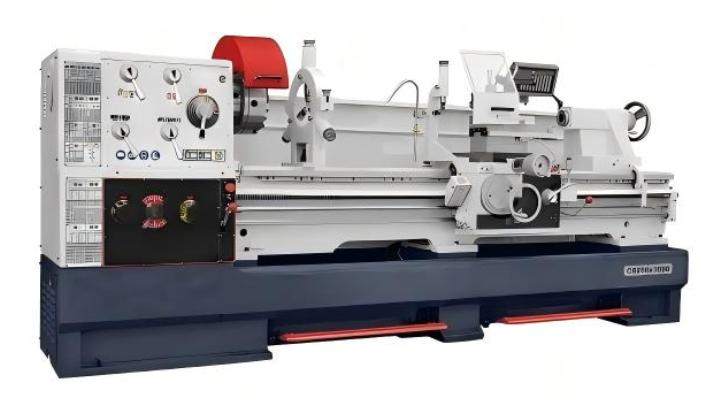

| Model | C6266A-1500 |
| Brand | Hoston |
| Origin | China |
| Swing over Bed | 660mm |
| Distance between Center | 1500mm |
| Swing over Cross Slide | 440mm |
| Turning diameter wihout gap bridge | 900mm |
| Bed Width | 400mm |
| Width of Gap bed | 320mm |
| Spindle Bore Diameter | 105mm |
| Number of Spindle Speed | 18 steps |
| Range of Spindle Speeds: | Min: Maxm 25 rpm. ,Max: Minm 1600 rpm |
| Spindle Nose | D1-8 |
| Tailstock Travel of Barrel | 230 |
| Range of Metric Pitches: | Min: Maxm 0.45mm, Max:Minm 120mm |
| Range of Diametrical Pitches | Min: Maxm 0.88D.P, Max: Minm 160 D.P |
| Range of Longitudinal Feeds: | Min: Maxm 0.044 mm /rev., Max:Minm 1.48 mm /rev. |
| Range of Cross Feeds | Min:Maxm 0.022 mm /rev., Max:Minm 0.74mm /rev. |
| Main Spindle Motor | 7.5kW |
3–Axis position indicator
One-piece heavy-duty cast bed
Comprehensive metric, diametric, module, and Whitworth threading
Taper turning attachment for additional applications
Sturdy headstock design with large spindle bearings
Follow rest
4-jaw face plate chuck Ø 400 mm
Face plate Ø 450 mm
3-axis position indicator
LED Work light
Fixed splash guard (wall)
Quick tool changer head WC, Quick change tool holder
Taper turning unit
Dead center and Reducing sleeve (Tailstock is 5MT)
Reduction Sleeve MK 5/4
Rotating Center Point MK4
