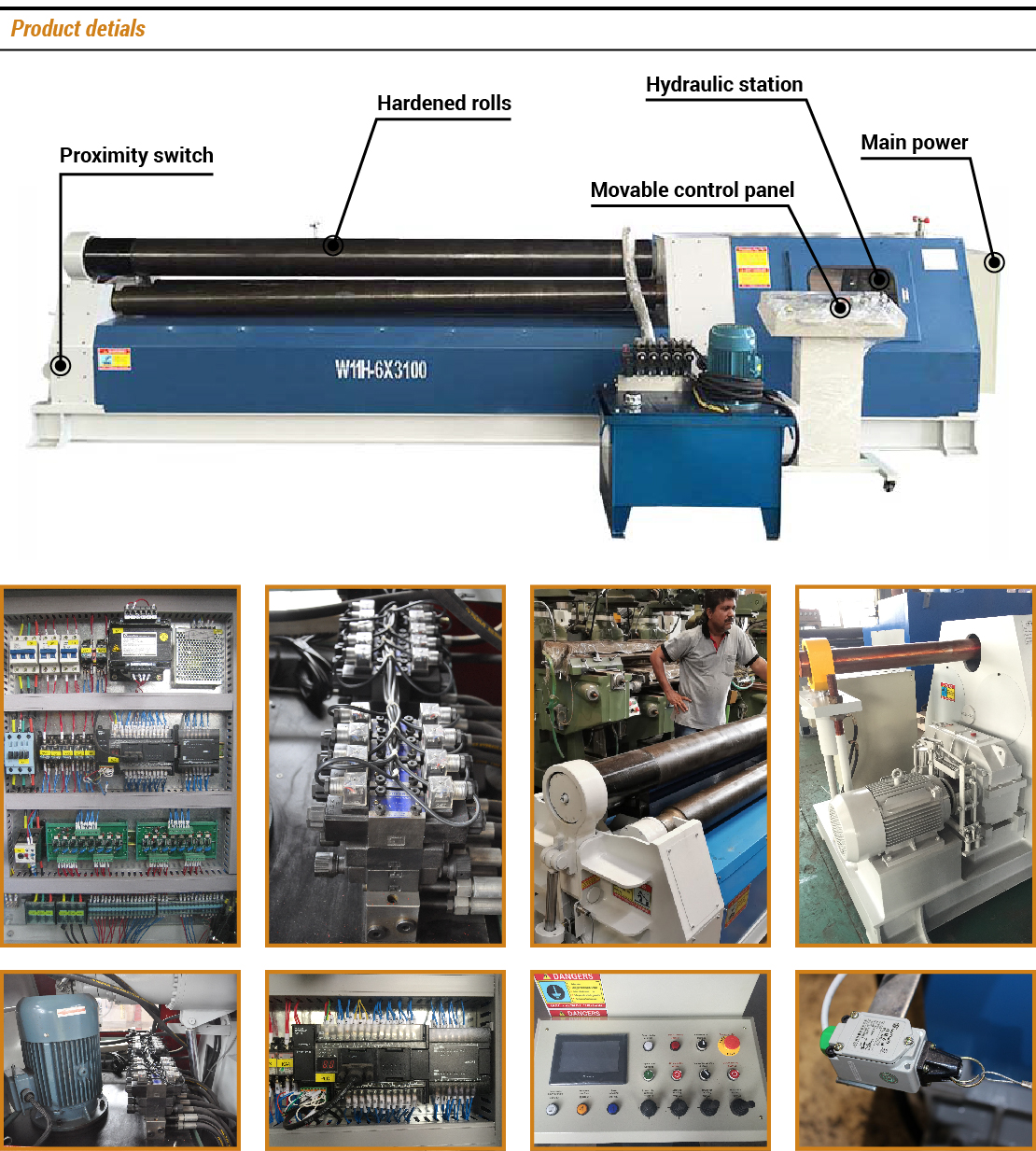

Hydraulic 3-Roller Arc Adjust Plate Rolling Machine
Scan the QR code
Model | Max.Bending thickness(mm) | Pre.Bending thickness(mm) | Max.Bending width(mm) | Yield limit(mm) | Top roller diameter(mm) | Bottom roller diameter(mm) | Main power (kw) |
W11H-6x2000 | 6 | 5 | 2000 | 245 | 160 | 160 | 4 |
W11H-4x2500 | 4 | 3.5 | 2500 | 245 | 160 | 160 | 4 |
W11H-8x2000 | 8 | 6.5 | 2000 | 245 | 190 | 190 | 5.5 |
W11H-6x2500 | 6 | 5 | 2500 | 245 | 190 | 190 | 5.5 |
W11H-10x2000 | 10 | 8 | 2000 | 245 | 210 | 210 | 7.5 |
W11H-8x2500 | 8 | 6.5 | 2500 | 245 | 210 | 210 | 7.5 |
W11H-6x3000 | 6 | 5 | 3000 | 245 | 210 | 210 | 7.5 |
W11H-12x2000 | 12 | 10 | 2000 | 245 | 230 | 230 | 11 |
W11H-10x2500 | 10 | 8 | 2500 | 245 | 230 | 230 | 11 |
W11H-8x3000 | 8 | 6.5 | 3000 | 245 | 230 | 230 | 11 |
W11H-16x2000 | 16 | 13 | 2000 | 245 | 270 | 270 | 11 |
W11H-12x2500 | 12 | 10 | 2500 | 245 | 270 | 270 | 11 |
W11H-10x3000 | 10 | 8 | 3000 | 245 | 270 | 270 | 11 |
W11H-20x2000 | 20 | 16 | 2000 | 245 | 300 | 300 | 11 |
W11H-16x2500 | 16 | 13 | 2500 | 245 | 300 | 300 | 11 |
W11H-12x3000 | 12 | 10 | 3000 | 245 | 300 | 300 | 11 |
W11H-20x2500 | 20 | 16 | 2500 | 245 | 330 | 330 | 15 |
W11H-16x3000 | 16 | 13 | 3000 | 245 | 330 | 330 | 15 |
W11H-25x2500 | 25 | 20 | 2500 | 245 | 360 | 360 | 18.5 |
W11H-20x3000 | 20 | 16 | 3000 | 245 | 360 | 360 | 18.5 |
W11H-30x2500 | 30 | 25 | 2500 | 245 | 390 | 390 | 22 |
W11H-25x3000 | 25 | 20 | 3000 | 245 | 390 | 390 | 22 |
W11H-30x3000 | 30 | 25 | 3000 | 245 | 420 | 420 | 30 |
