| Parameter | WLN-DRS180 |
|---|---|
| Max tube diameter | 160mm |
| Max length of pipe | 800mm |
| Thickness of aluminum alloy | 3.0mm |
| Thickness of carbon steel | 2.0mm |
| Thickness of stainless steel | 1.5mm |
| Z-axis stroke | 300mm |
| X-axis stroke | 400mm |
| Spindle motor power | 7.5kw servo |
| Spindle speed | 1000rpm |

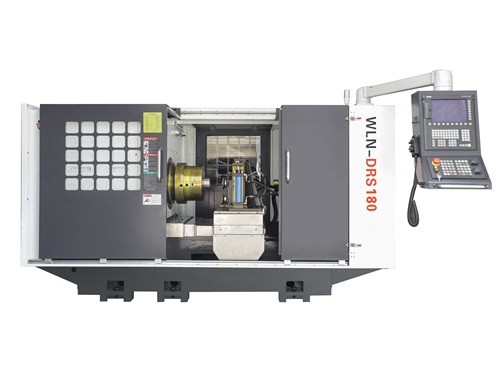

The WLN-DRS180 is a high-precision CNC tube and pipe spinning machine designed for forming complex cylindrical, conical, and contoured metal components. Equipped with a robust 7.5kW servo spindle motor delivering up to 1000 RPM, this machine offers exceptional rigidity, accuracy, and efficiency across aerospace, automotive, hydraulic, and HVAC applications.
Versatile Processing: Handles 3.0mm Al, 2.0mm CS & 1.5mm SS easily.
Generous Envelope: Fits Ø160x800mm tubes; Z-stroke 300mm, X-stroke 400mm.
High Precision Servo: 7.5kW motor gives smooth speed & high repeatability.
