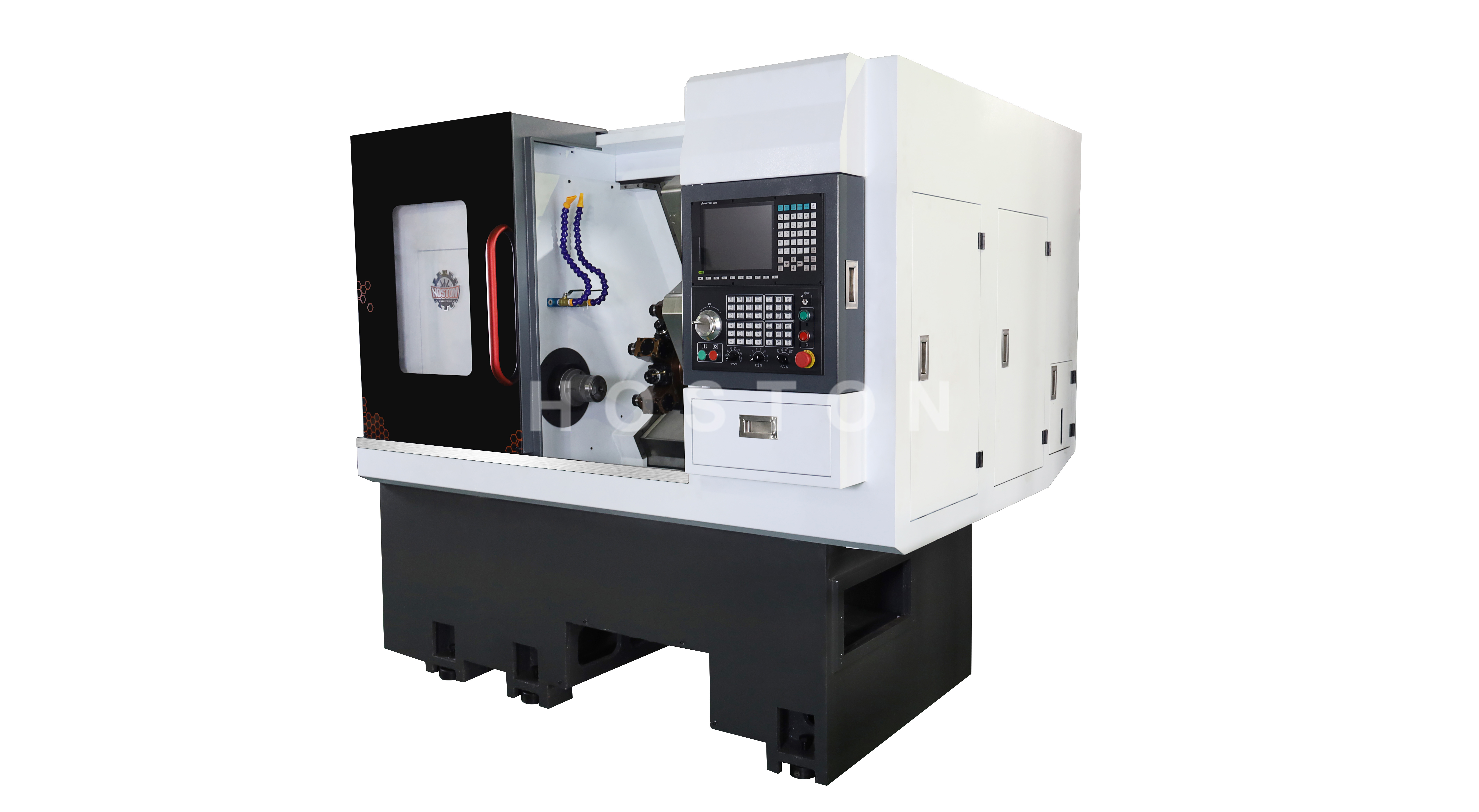

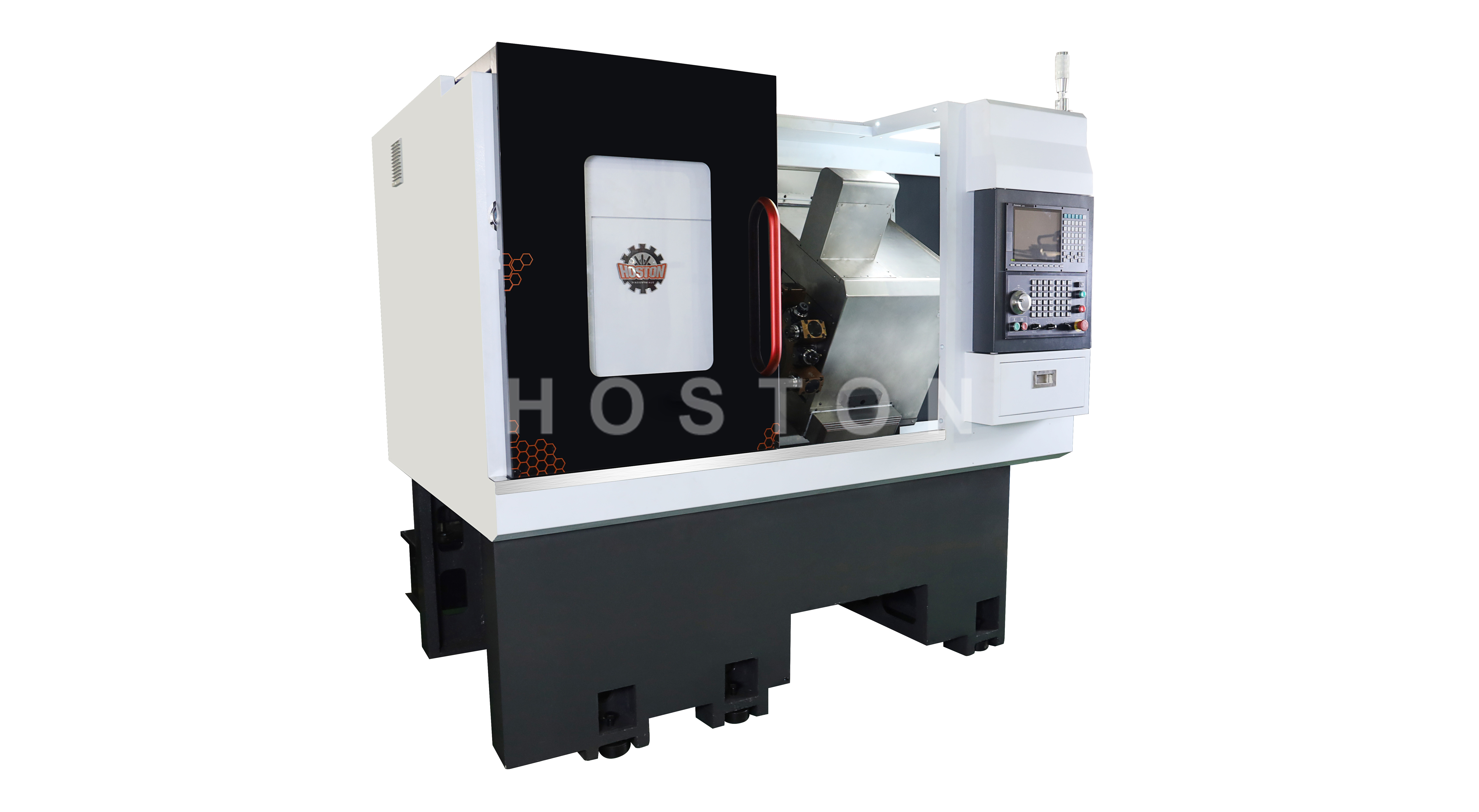

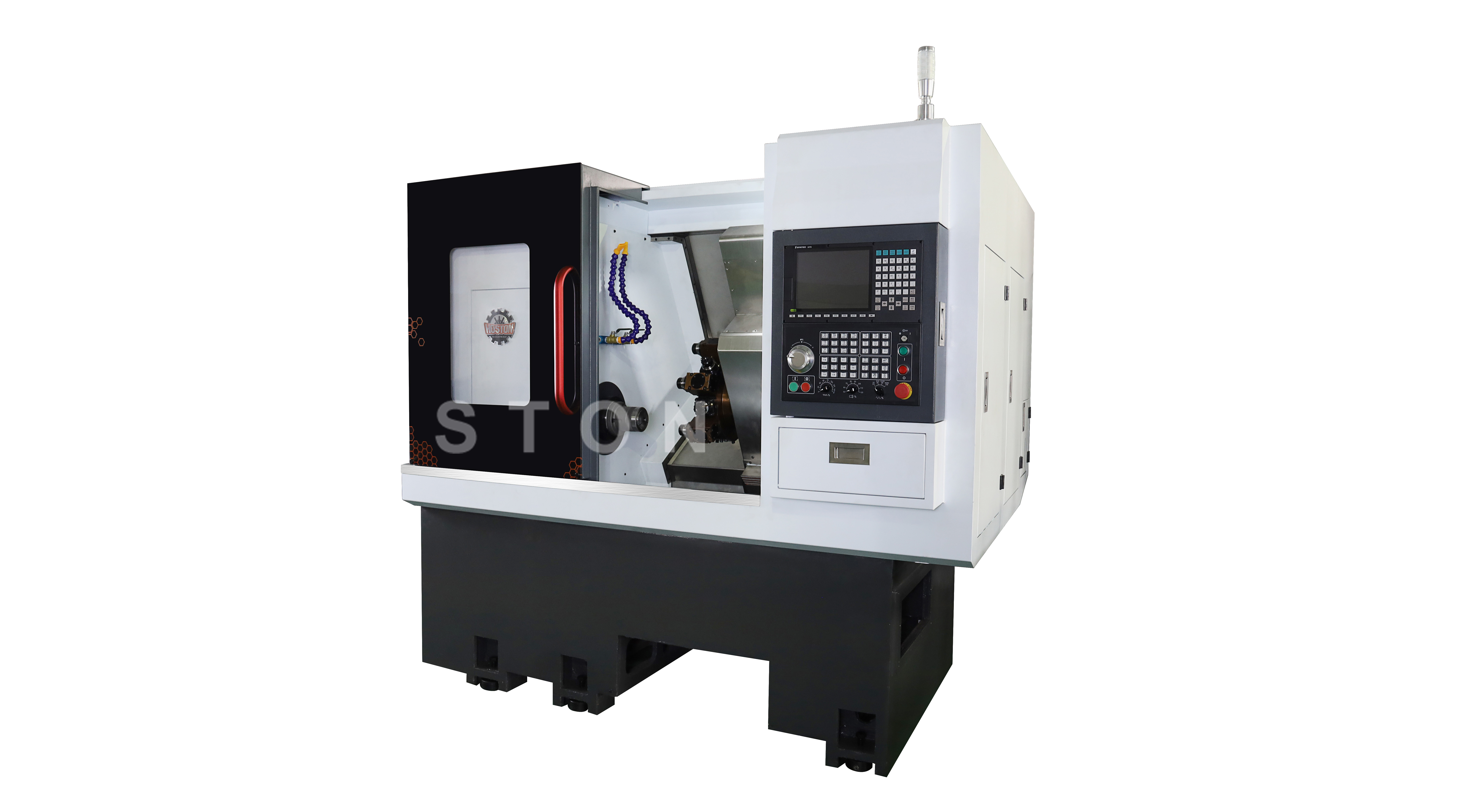

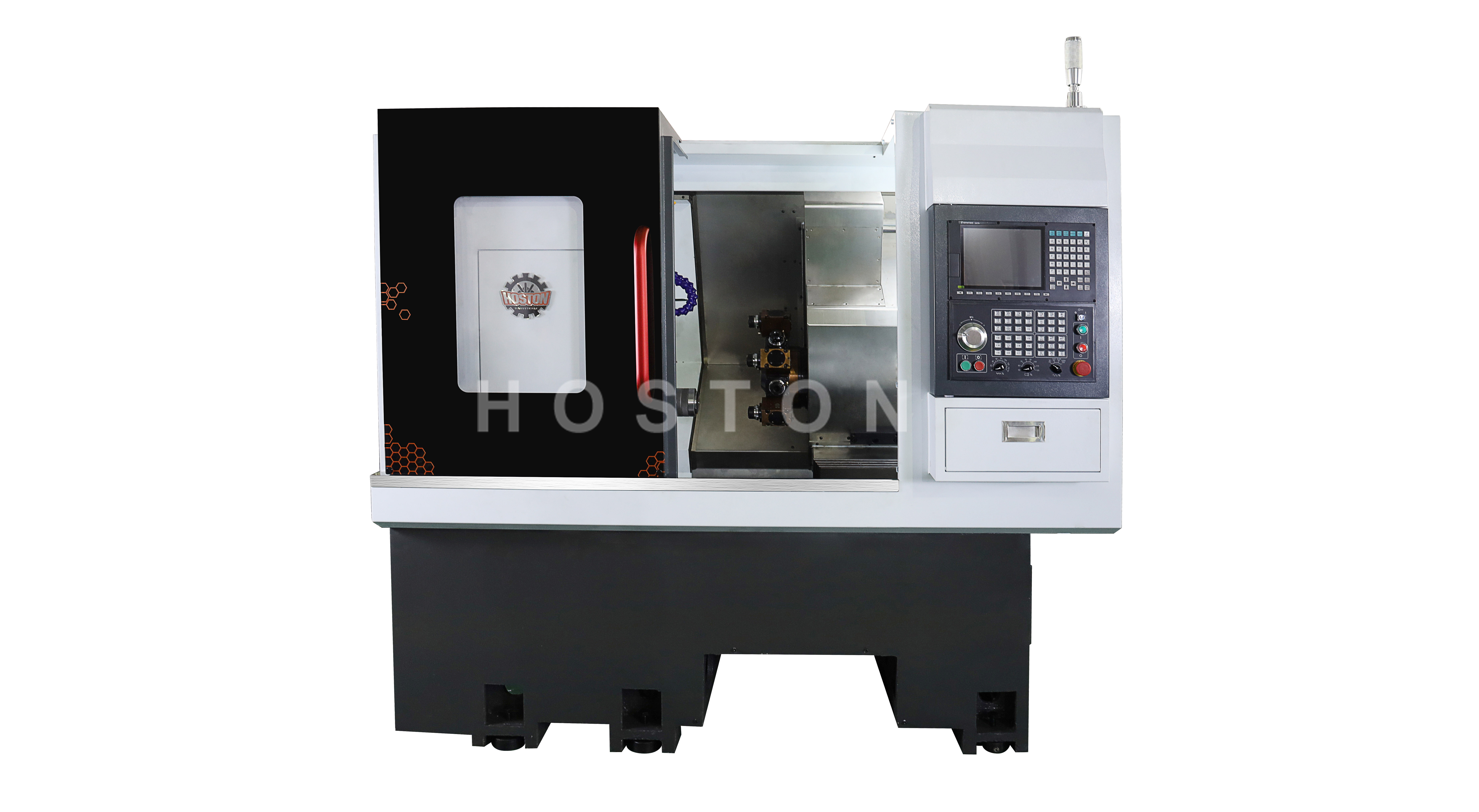

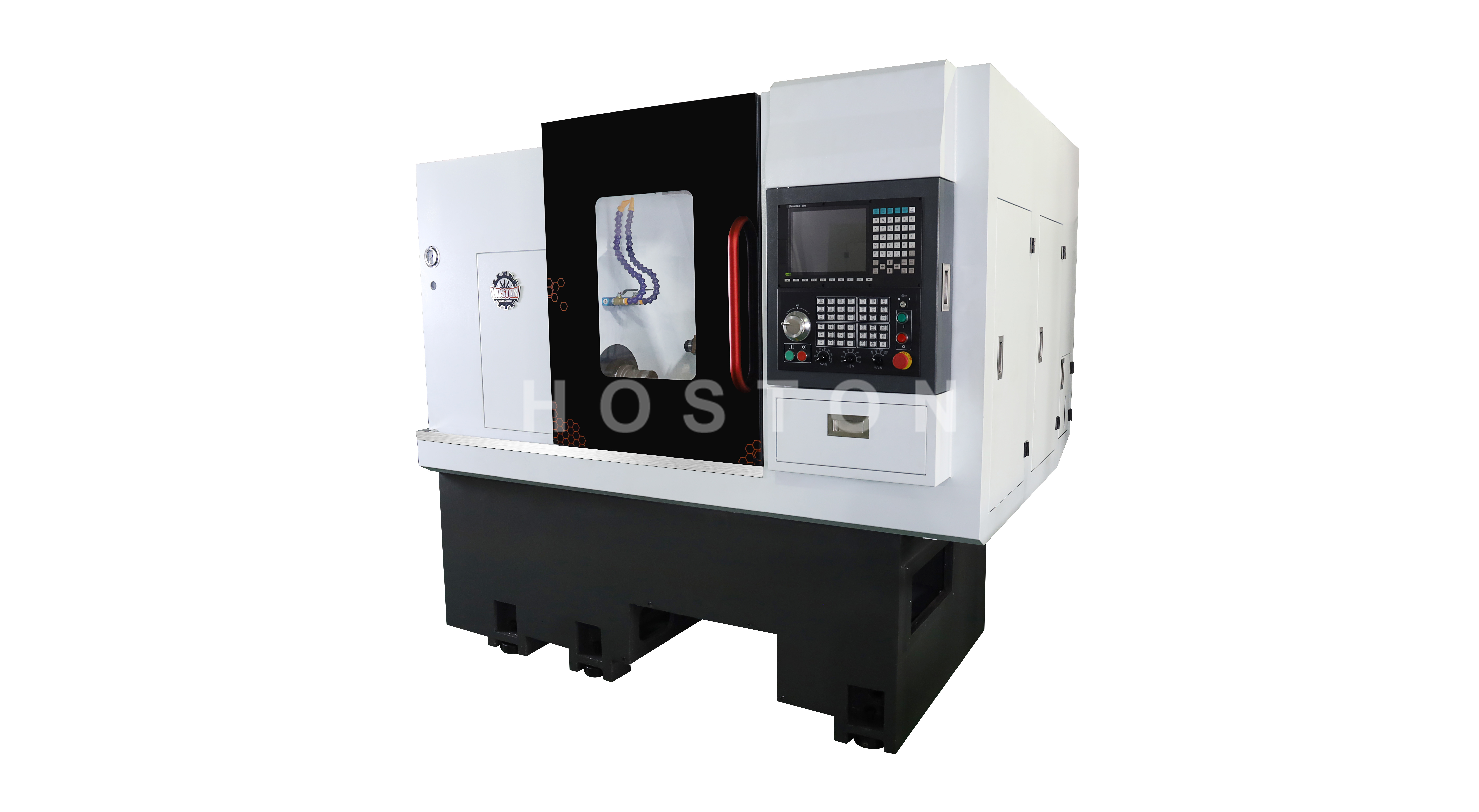

China CK52MY, turning and milling machine

CK52MY

Model: CK52MY

	Item	Unit	CK52MY	CK46MY
Capacity	Max swing over bed	mm	450	450
	Max cutting diameter	mm	450	450
	Max cutting length	mm	380	380
Travel	X axis travel	mm	250	250
	Y axis travel	mm	±50	±50
	Y axis travel	mm	400	400
Precision	Spindle runout	mm	0.004	0.004
	Spindle index position accuracy		±0.002°	±0.002°
	X//Y/Z axis reposition precision	mm	0.002	0.002
Spindle	Spindle speed	rpm	4000	5000
	Chuck diameter	inch	8"	6"
	Spindle nose		A2-6	A2-5
	Spindle bore	mm	63	56
	Max bar diameter	mm	52	45
Turret	Type		BT40 15-station powered turret with Y-axis	BT40 15-station powered turret with Y-axis
	Type		Optional BT55 12-station power turret with Y-axis	Optional BT55 12-station power turret with Y-axis
	Outer Shank dia.		BT40 20 / BT55 25	BT40 20 / BT55 25
	Inner shank dia.	mm	BT40 25 / BT55 40	BT40 25 / BT55 40
Rapid speed	X axis rapid speed	m/min	24	24
	Y axis rapid speed	m/min	24	24
	Z axis rapid speed	m/min	24	24
Motor power	Spindle	kw	7.5	7.5
	X axis feed motor	kw	2.4	2.4
	Z axis feed motor	kw	2.4	2.4
	Y axis feed motor	kw	1.7	1.7
	Milling motor	kw	3.1	3.1
Other	Dimension	mm	2400×1700×1920	2400×1700×1920
Other	Weight	kg	3200	3200
	Optional without Y-axis to retain turn-mill function		CK52M	CK46M

High Precision, High Rigidity, Heavy Duty Sleeve Spindle
Integral cast iron base, 30° inclined bed, good rigidity, easy operation and chip removal
High-rigidity, high-precision, high-speed Japanese roller guides, Japanese precision ball screws
The use of servo power turret with Y-axis can realize turning and milling compound machining
The tailstock is controlled by hydraulic pressure, and the mandrel is automatically extended. It has good rigidity and is easy to operate. It can process long shaft parts.
