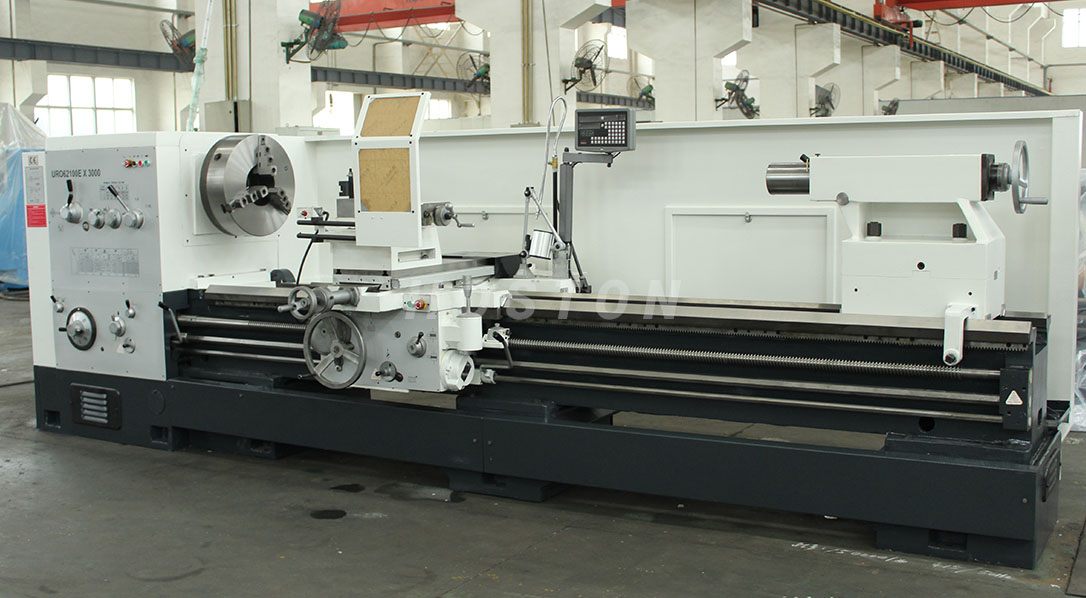

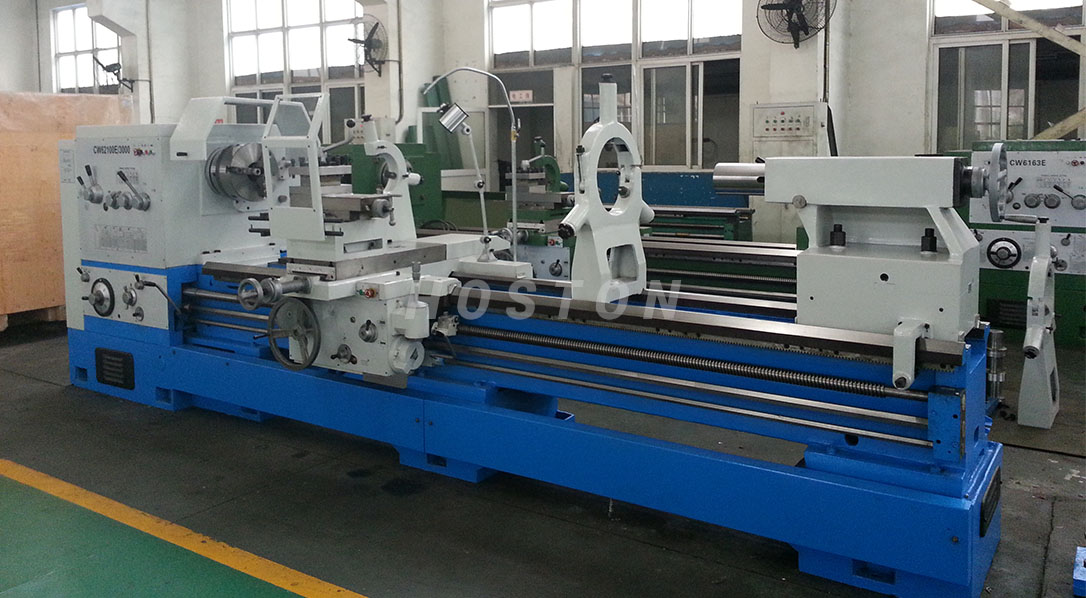

CWE series Heavy Duty Lathe Machine
Scan the QR code
| MODEL | CW6163E | CW6180E | CW61100E | CW61120E |
| Max swing over bed | 630mm | 800mm | 1000mm | 1200mm |
| Max swing over cross slide | 350mm | 485mm | 685mm | 800mm |
| Max swing over gap | 830mm | 1000mm | 1200mm | 1400mm |
| Valid length of gap | 230mm | |||
| Center distance | 1m 2m 3m 4m 5m 6m 8m 10m 12m | |||
| Max.turning length | 750,1250,1750,2750,3750,4750,5750,7750,9750,11750mm | |||
| Bed width | 550mm | |||
| Spindle bore | Φ105mm （Φ130mm，CW6180E and above is optional） | |||
| Spindle nose | C-11 or D-11 | |||
| Spindle taper | Φ120mm 1:20 （Φ140mm，CW6180E and above is optional） | |||
| Spindle speeds | 14-750rpm(18steps) | |||
| Metric threads range | 1-240mm(54 kinds) | |||
| Inch threads range | 28-1 inch(36 kinds) | |||
| Moudle threads range | 0.5-60 DP(27 kinds) | |||
| Diametral threads range | 30-1 t.p.i.(27 kinds) | |||
| Longitudinal feeds range | 0.048-24.3mm/r (72 kinds) | |||
| Cross feed range | 0.024-12.15mm/r (72 kinds) | |||
| Rapid feed:long/cross | 4/2m/min | |||
| Leadscrew size:Diameter/Pitch | T48mm/12mm,T55mm/12mm(5M以上，不包含5M） | |||
| Cross slide travel | 350mm | 420mm | 500mm | 620mm |
| Compound rest travel | 200mm | |||
| Size of tool shank | 32*32mm | |||
| Sleeve diameter | Φ100mm | Φ120mm | ||
| Sleeve taper | MORES 6 | |||
| Sleeve travel | 240mm | |||
| Main drive motor | 11kw | |||
| Coolant pump motor | 0.09kw | |||
| Rapid feed motor | 1.1kw | |||
