| Parameter | WLH-SRS2050 |
|---|---|
| Max. Diameter of Material | 2050mm |
| Main Motor Power | 35kw servo |
| X Travel | 700mm |
| Z Travel | 1200mm |
| Tailstock Force | 100kn |
| Travel of Tailstock | 1100mm |
| Amount of Tools | 8/optional |
| Thickness of Work Piece (Al, Cu) | 1-8mm |
| Thickness of Work Piece (C.S) | 1-6mm |
| Thickness of Work Piece (SS) | 1-4mm |

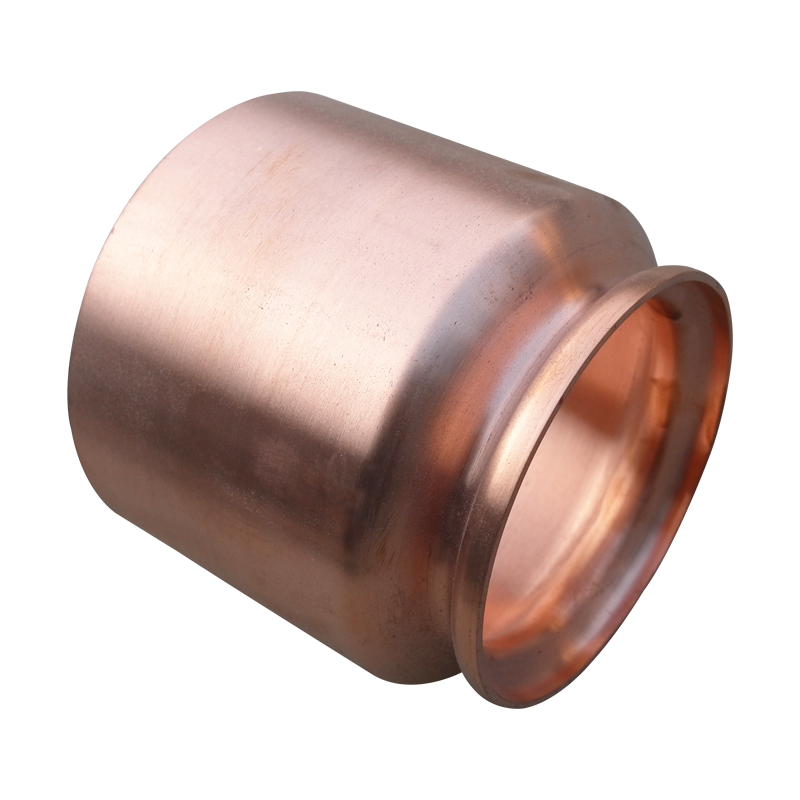

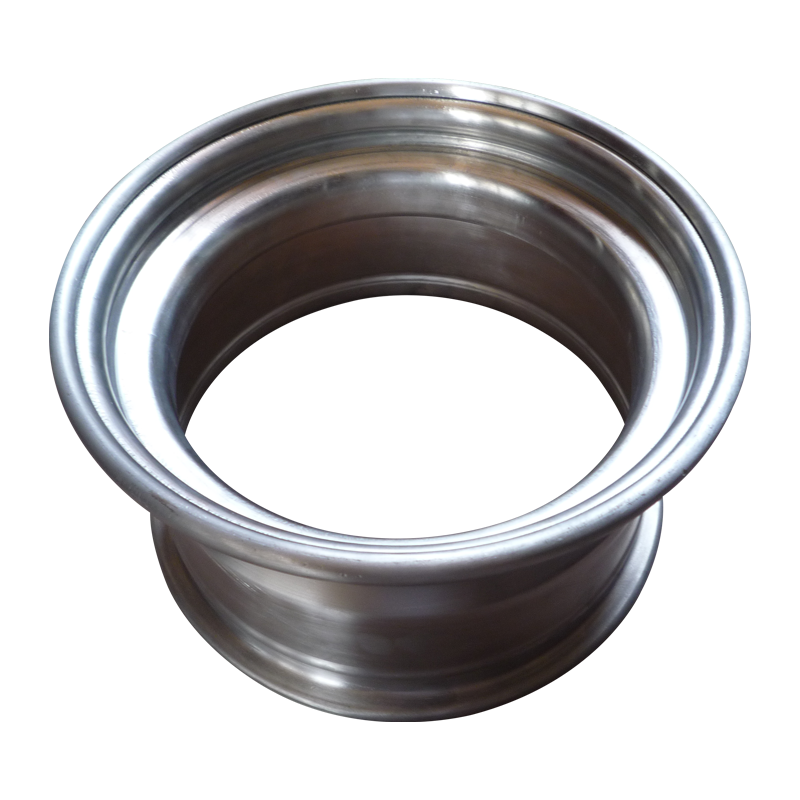

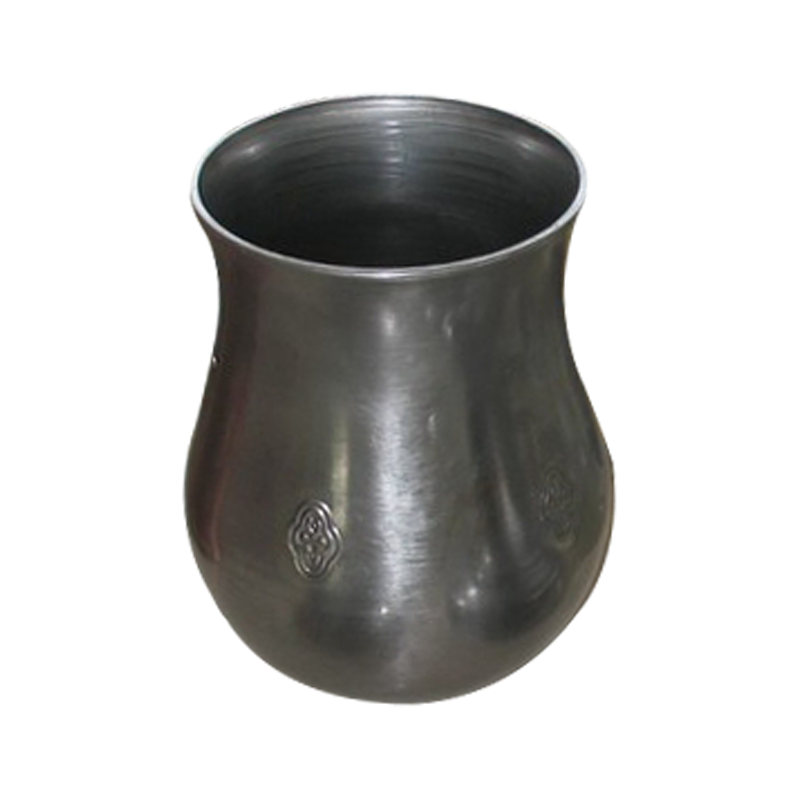

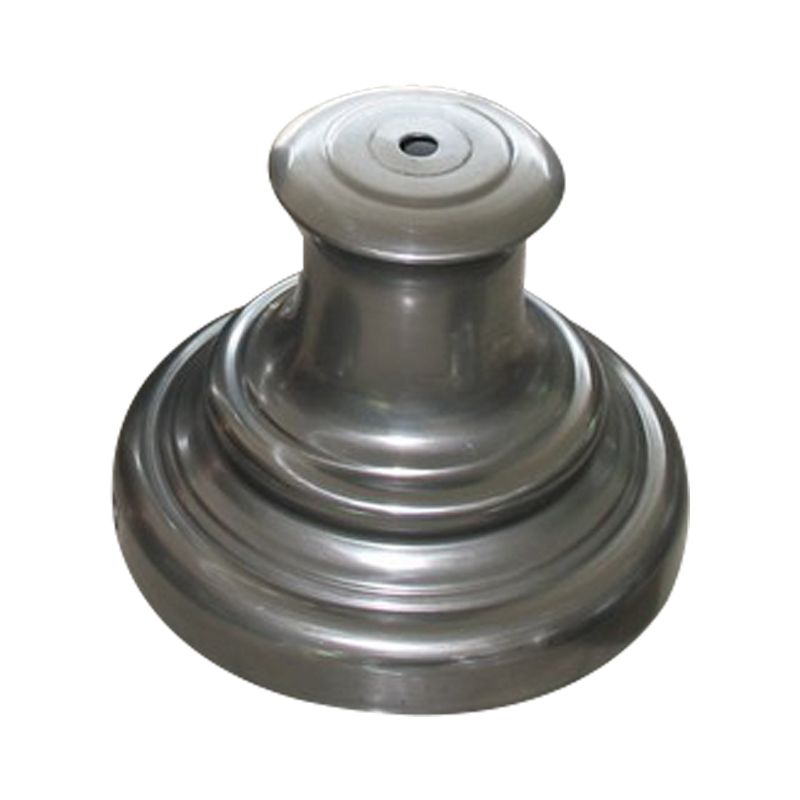

The WLH-SRS2050 is a heavy-duty, multi-functional single-roller metal spinning machine engineered for large-diameter and high-precision forming operations. It is widely used for producing lampshades, reflectors, engine parts, cookware, centrifuge components, dish ends, fan parts, and aerospace/automotive components.
■ Heavy-Duty Capacity: Accommodates a maximum material diameter of up to 2050mm with a robust 100kN tailstock clamping force and 1100mm tailstock travel for secure processing.
■ High Servo Power: Powered by a 35kW main servo motor with substantial axis travel (X-axis: 700mm, Z-axis: 1200mm), guaranteeing dynamic stability and high-torque spinning.
■ Versatile Material Processing: Capability to form various metals—Aluminum/Copper (1–8mm), Carbon Steel (1–6mm), and Stainless Steel (1–4mm).
■ Flexible Tooling Options: Features an optional 8-station tool holder to streamline multi-process automated production across lighting, aerospace, HVAC, chemical, and food packaging industries.
