Model

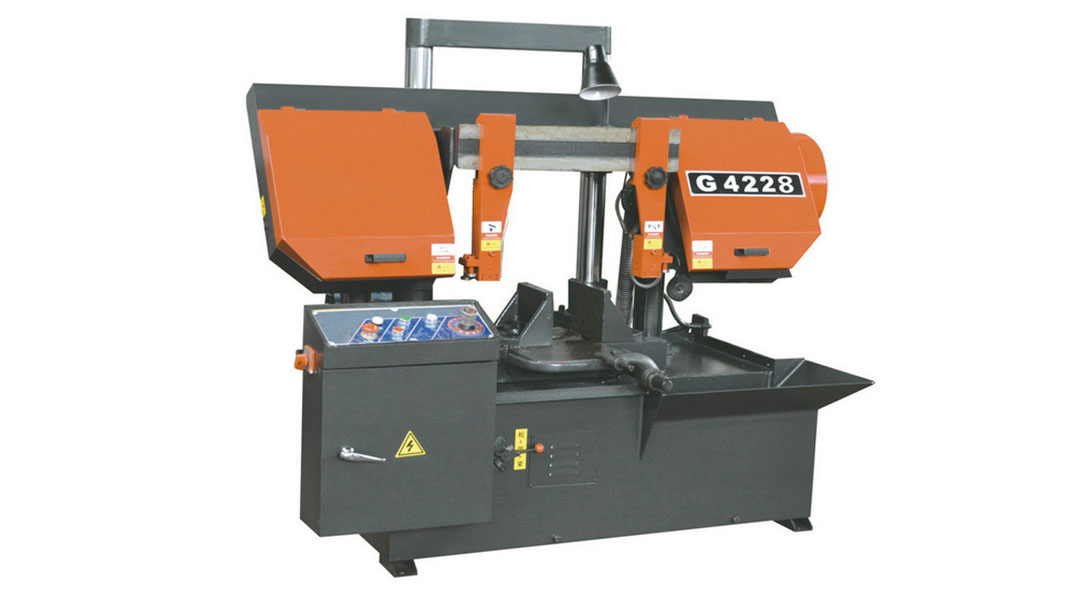

G4228

Max. Cutting Diameter

Round: 280mm

Plate: 280*350mm

Blade Speed

27.48.75m/min

Blade Size

0.9*27*3505mm

Motor Output

2.2kw

Hydraulic Pressure

0.37kw

Coolant Pump

0.04kw

Table height

630mm

Machine Size(L*W*H)

1850*1000*1580mm

Net Weight

1000kg

Vice clamping

Hydraulic

Blade tensioning form

Manual

Feeding cut adjust way

Hydraulic stepless

Feeding way

Automatic/Manual

Hydraulic cooling way

Wind cooling

Chip conveyor way

Manual/Automatic

Voltage

380V 50HZ 3Phase
