| MODEL | CW6280E-2000 |
|---|---|
| Max swing over bed | 800mm |
| Max swing over cross slide | 485mm |
| Distance between centers | 750, 1250, 1750, 2750, 3750mm |
| Max swing over gap | 1000mm(CW6280E) |
| Valid length of gap | 230mm |
| Bed width | 550mm |
| Spindle hole | Φ105mm (Φ130mm, optional for CW6180E and above) |
| Spindle nose | C-11 or D-11 |
| Spindle taper | 1:20 Φ120mm taper 1:20 (Φ140 for CW6180 and above) |
| Spindle speeds (Number) | 14-750RPM (18 STEPS) |
| Metric threads range (kinds) | 1-240mm (54kinds) |
| Inch threads range (kinds) | 28-1 inch (36kinds) |
| Module threads range (kinds) | 0.5-60DP (27kinds) |
| Diametral threads range (kinds) | 30-1 t.p.i (27kinds) |
| Longitudinal feeds range (kinds) | 0.048-24.3mm/r(72kinds) |
| Cross feed range (kinds) | 0.024-12.15mm/r(72kinds) |
| Rapid feed: long/cross | 4/2m/min |

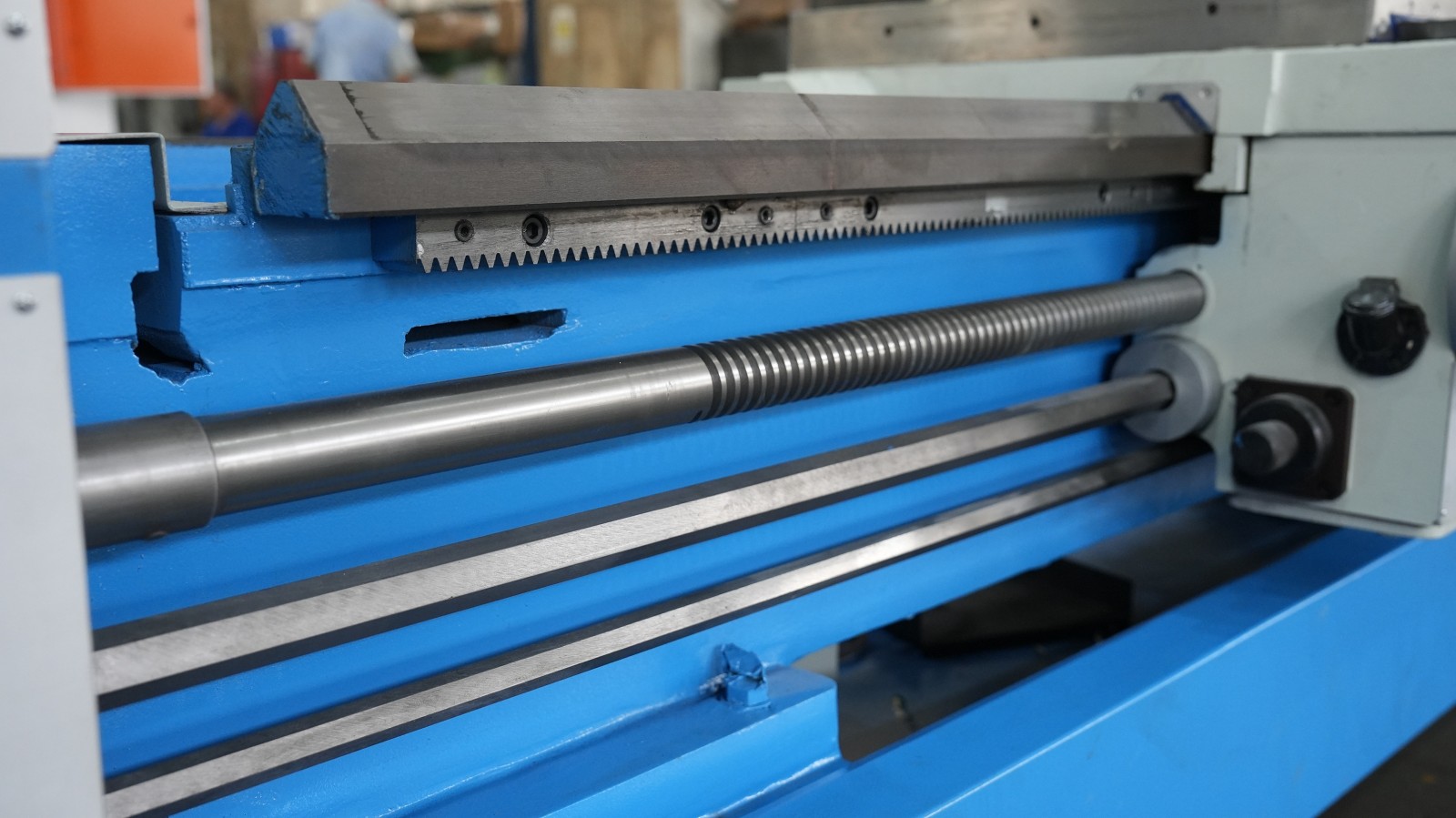

| Leadscrew size: Diameter/Pitch | T48mm/12mm or T55mm/12mm (5m and above) |
| Cross slide travel | 420mm |
| Compound rest travel | 200mm |
| Size of tool shank | 32 X 32mm |

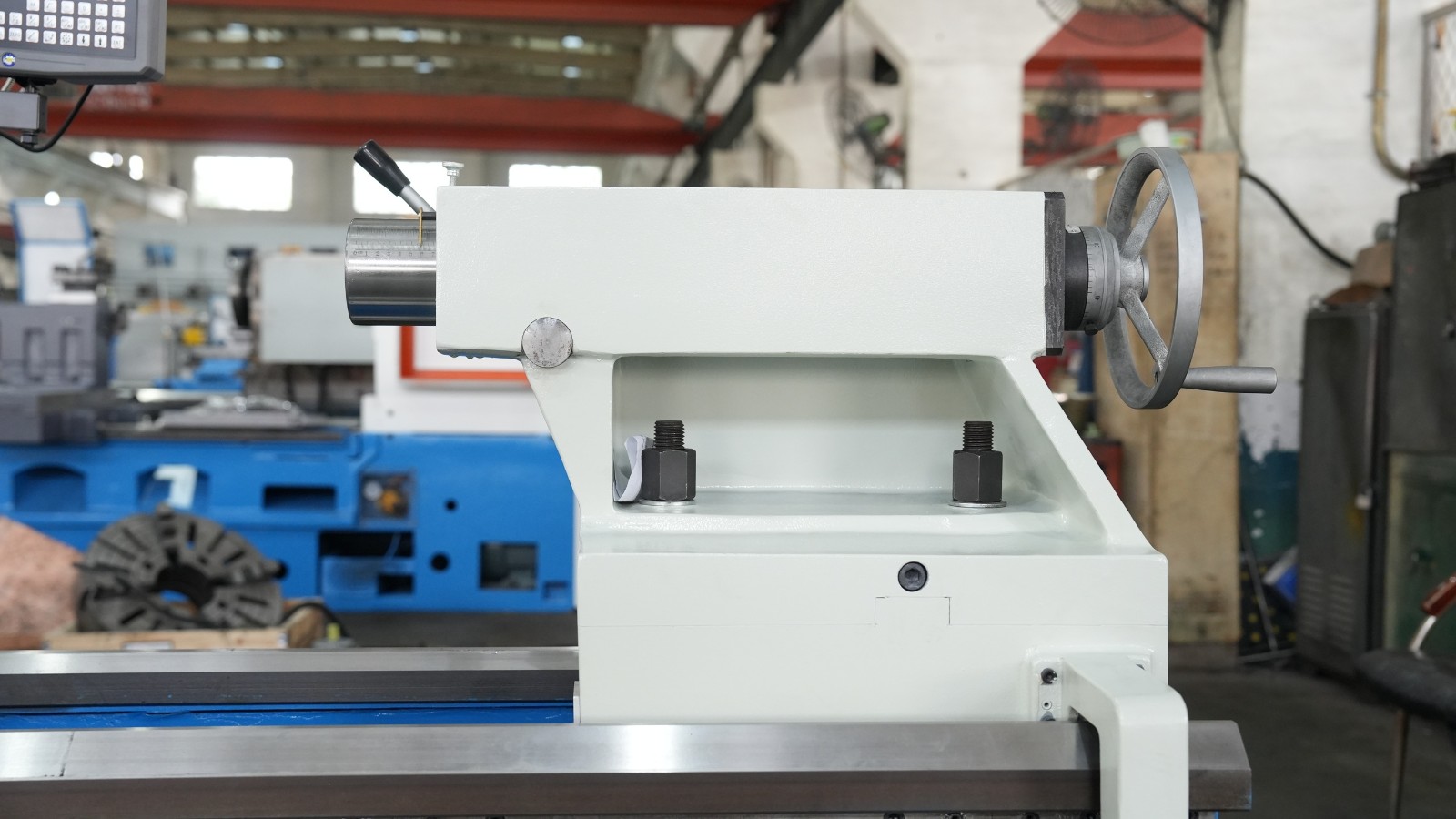

| Tailstock diameter | Φ100mm |
| Tailstock taper | MORES 6# |
| Tailstock travel | 240mm |
| Main drive motor | 11kw |
| Coolant pump motor | 0.09kw |
| Rapid feed motor | 1.1kw |
| Overall dimension (L×W×H) | 3452×1326×1390mm |
| Weight | 4500kg |

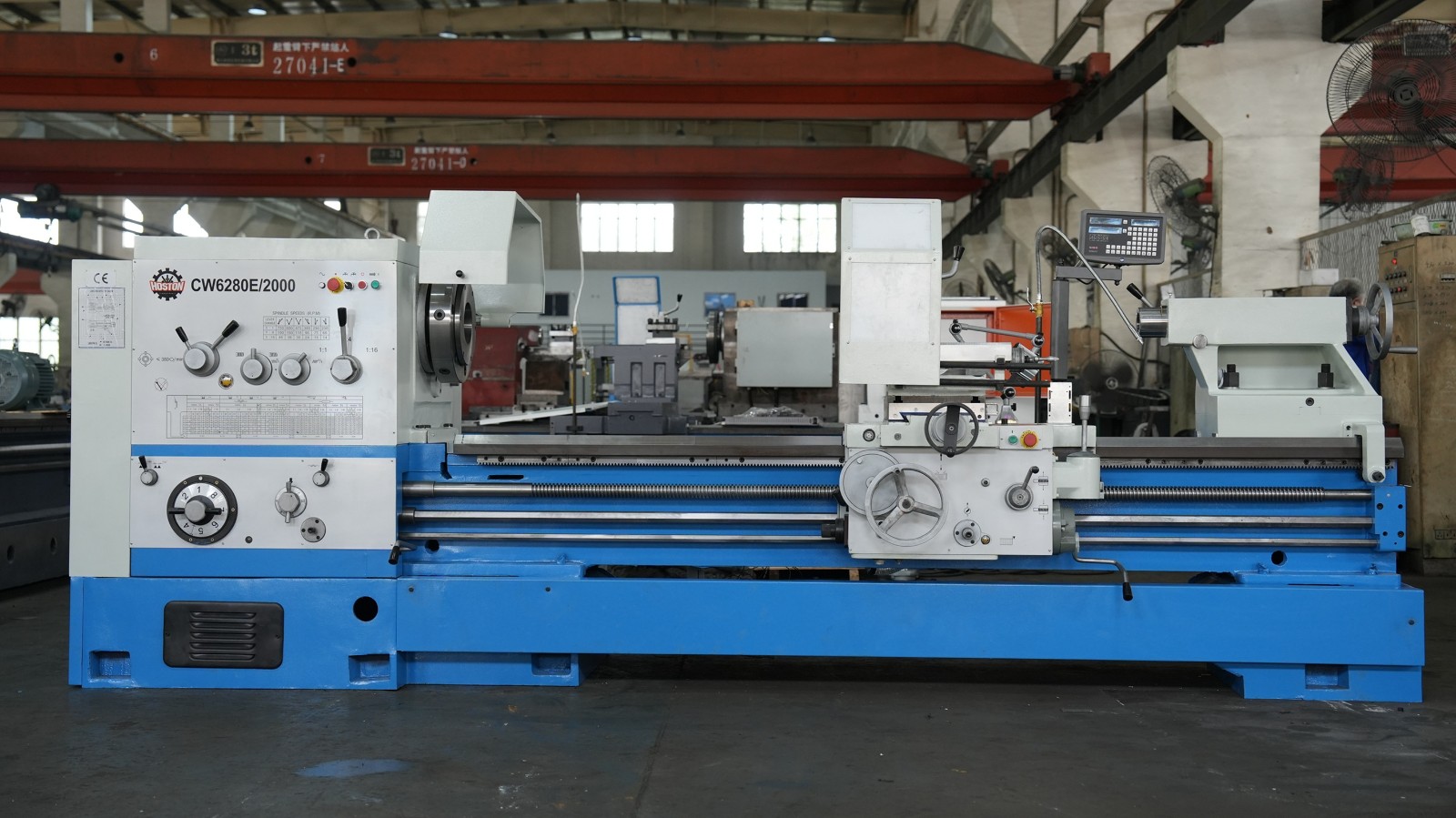

■ Large Capacity: 800mm max swing over bed and 1000mm swing in the gap.
■ High-Rigidity Structure: 550mm bed width ensures maximum vibration resistance and machining stability.

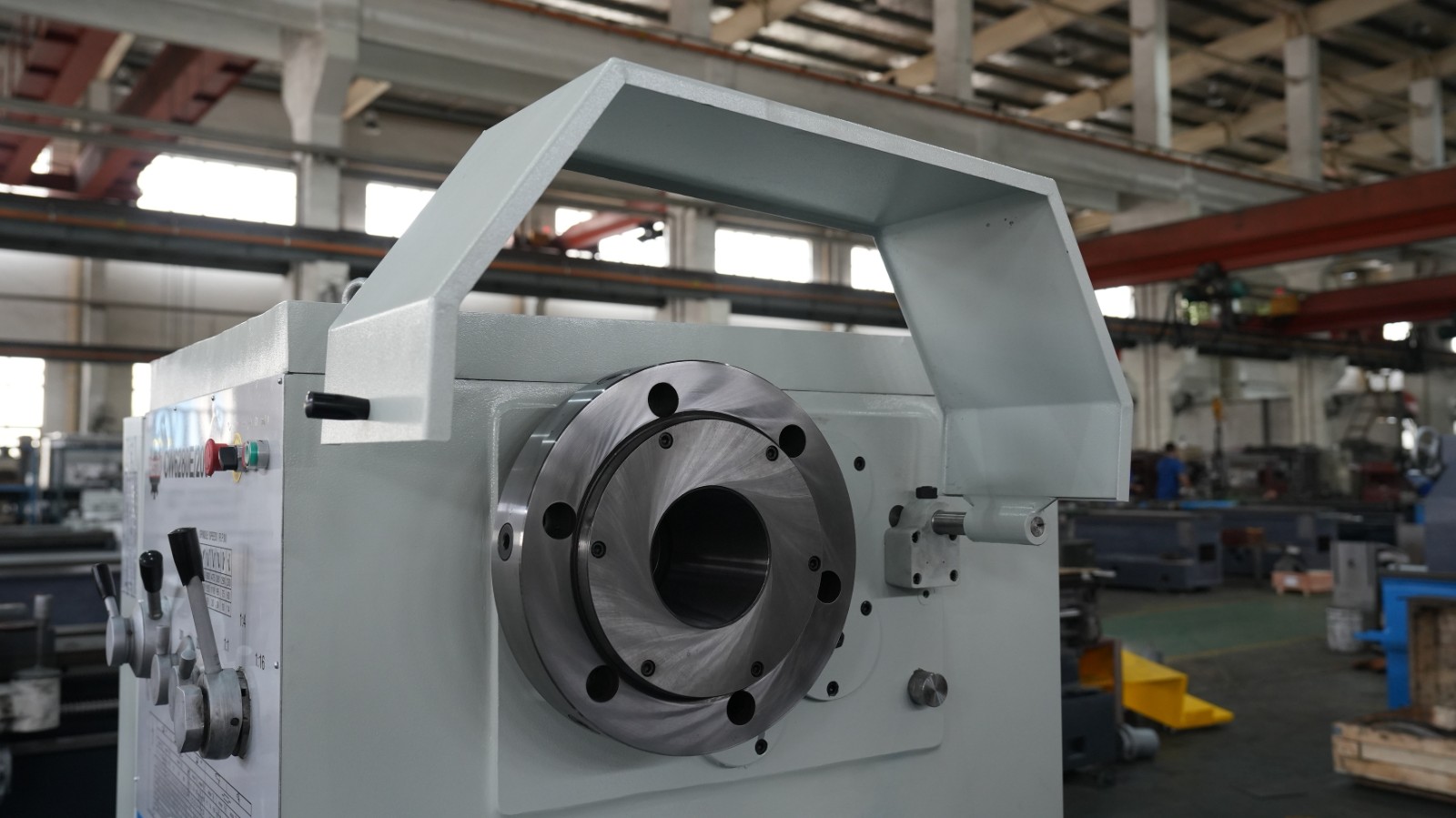

■ Large Spindle Bore: Φ105mm spindle hole driven by a robust 11kW motor for heavy-duty power output.

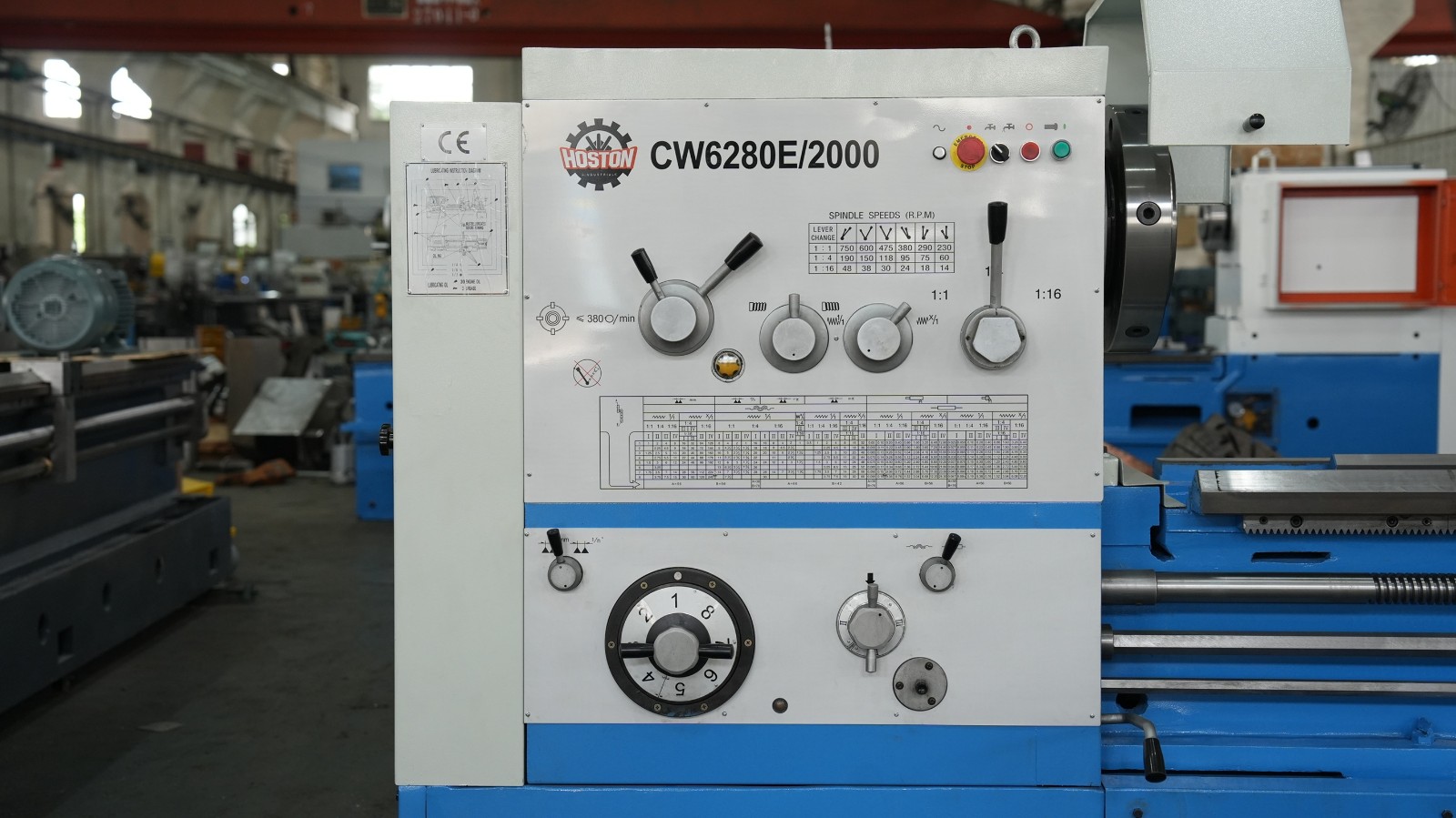

■ Versatile Machining Capabilities: 14-750 RPM spindle speed range (18 steps) with extensive metric, inch, module, and diametral threading capabilities
