CK6150/1000 Flat Bed CNC Lathe | Precision Metal Turning Machine Supplier

SPECIFICATION		Unit	CK6150/1000
CAPACITY	Max. swing over bed	mm	Ф500
	Max. swing over cross slide	mm	Ф285
	Max. X-axis (horizontal) travel	mm	265
	Max. Z-axis (vertical) travel	mm	1000
MACHINE BED	Bed rail width	mm	400
MACHINE BED	Center distance	mm	1000
FOOT STAND	Type	mm	Split type
SPINDLE	Spindle nose	mm	A2-8
	Spindle taper		Metric 90 (1:20)
	Spindle bore diameter	mm	Ф82
	Spindle speed (infinitely variable)	rpm	65-210, 195-620, 510-1600
	Spindle motor power	kW	7.5

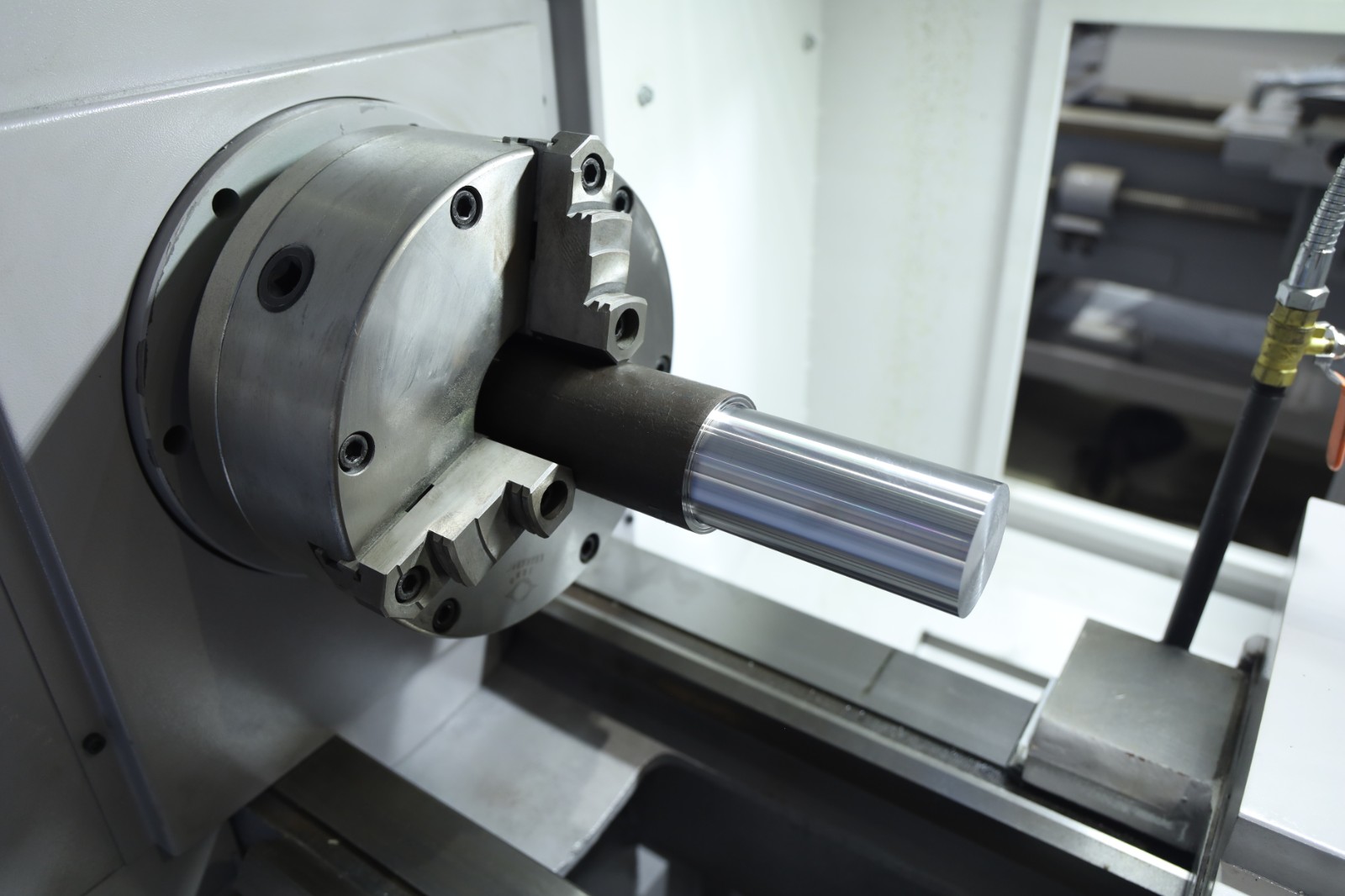

	Chuck ( (manual 3-jaw chuck) )	mm	Ф250
SERVO AXIS	X-axis/Z-axis lead screw (model)	mm	2505/4010
	X-axis/Z-axis servo motor torque	Nm	5.5/7.5 (GSK 980TDi)
	Rapid feed rate	m/min	6/8
ACCURACY	Processing accuracy	level	IT6-IT7
	Repositioning accuracy	mm	X axis ≤ 0.007, Z axis ≤ 0.01
	Roughness	um	Ra≤3.2

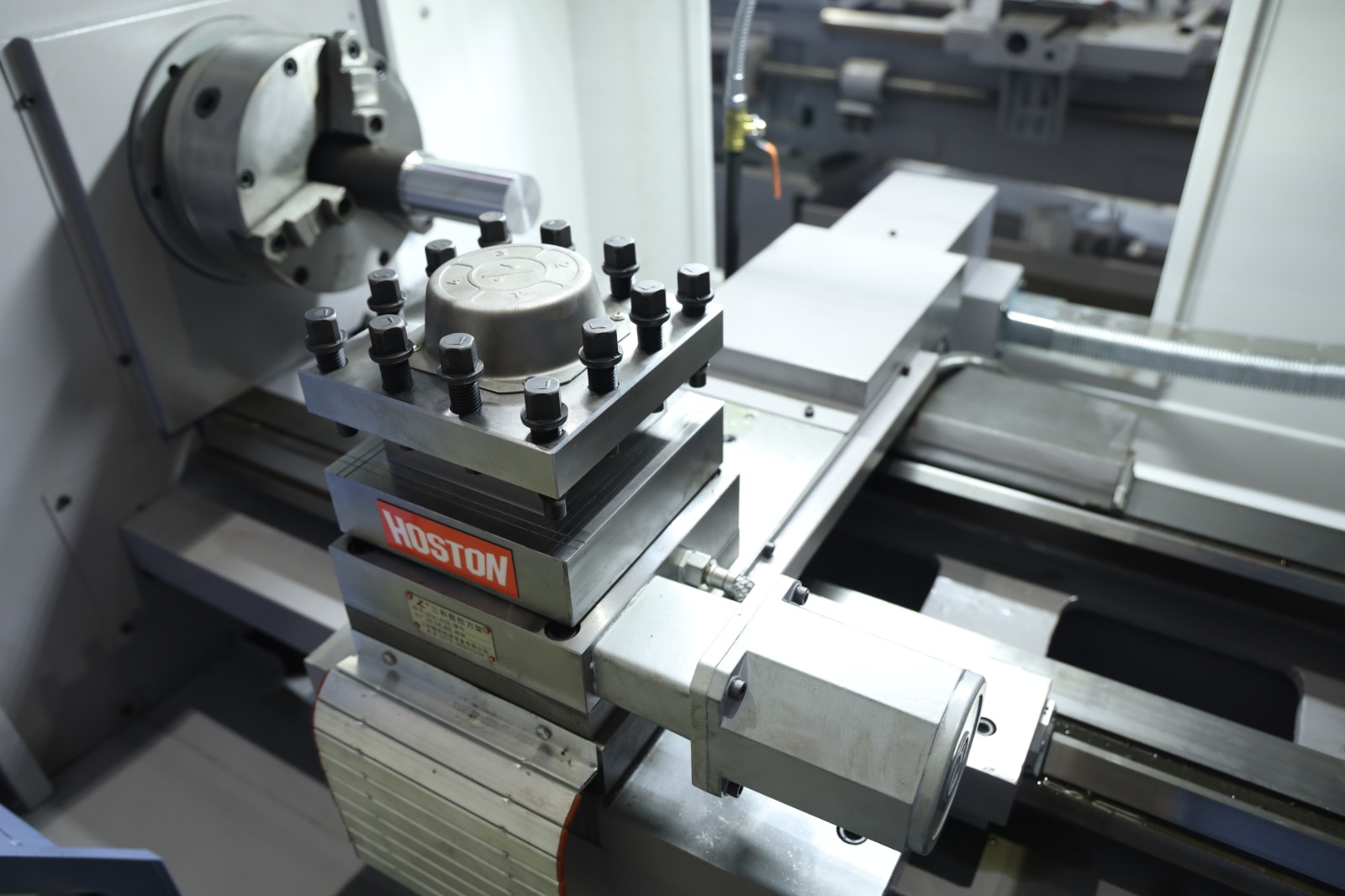

TOOL POST	Type	-	Vertical 4-position electric tool post
TOOL POST	Max. size of tool shank	kva	25×25

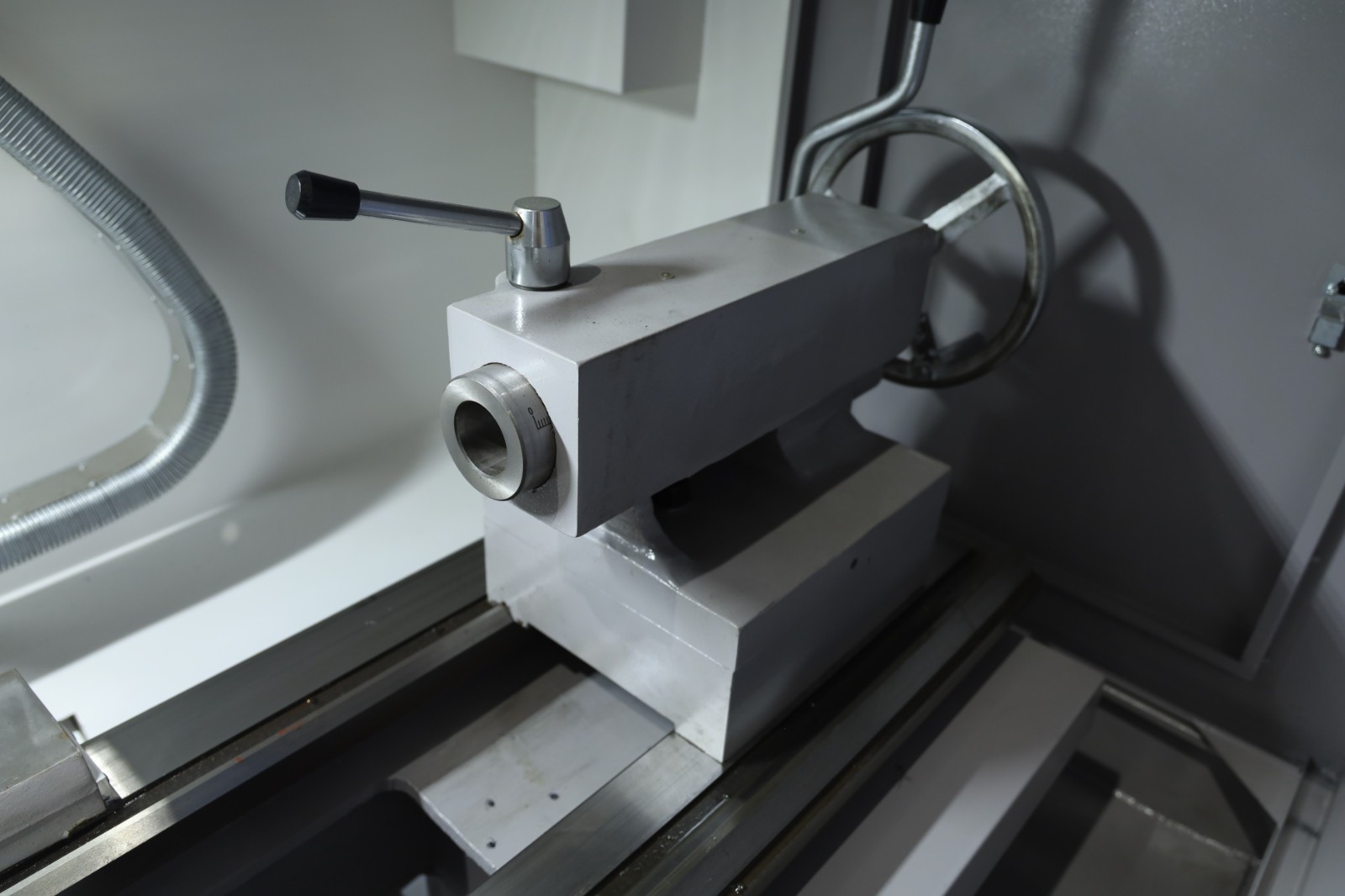

TAILSTOCK	Sleeve diameter/stroke	mm	Ф75/150
TAILSTOCK	Sleeve taper	-	MT5#
OTHERS	Machine weight	kg	2400
OTHERS	Power capacity	KVA	11

High Rigidity Widened Bed and Stable Load Capacity: Heavy-duty 390mm widened cast iron guideways undergo high-frequency quenching and precision grinding to ensure vibration resistance and long-term durability during heavy cutting.
Large Spindle Bore for High Efficiency Turning: Φ82mm spindle bore combined with a 7.5kW inverter motor accommodates large diameter discs, long shaft components, and bar stocks with high precision.

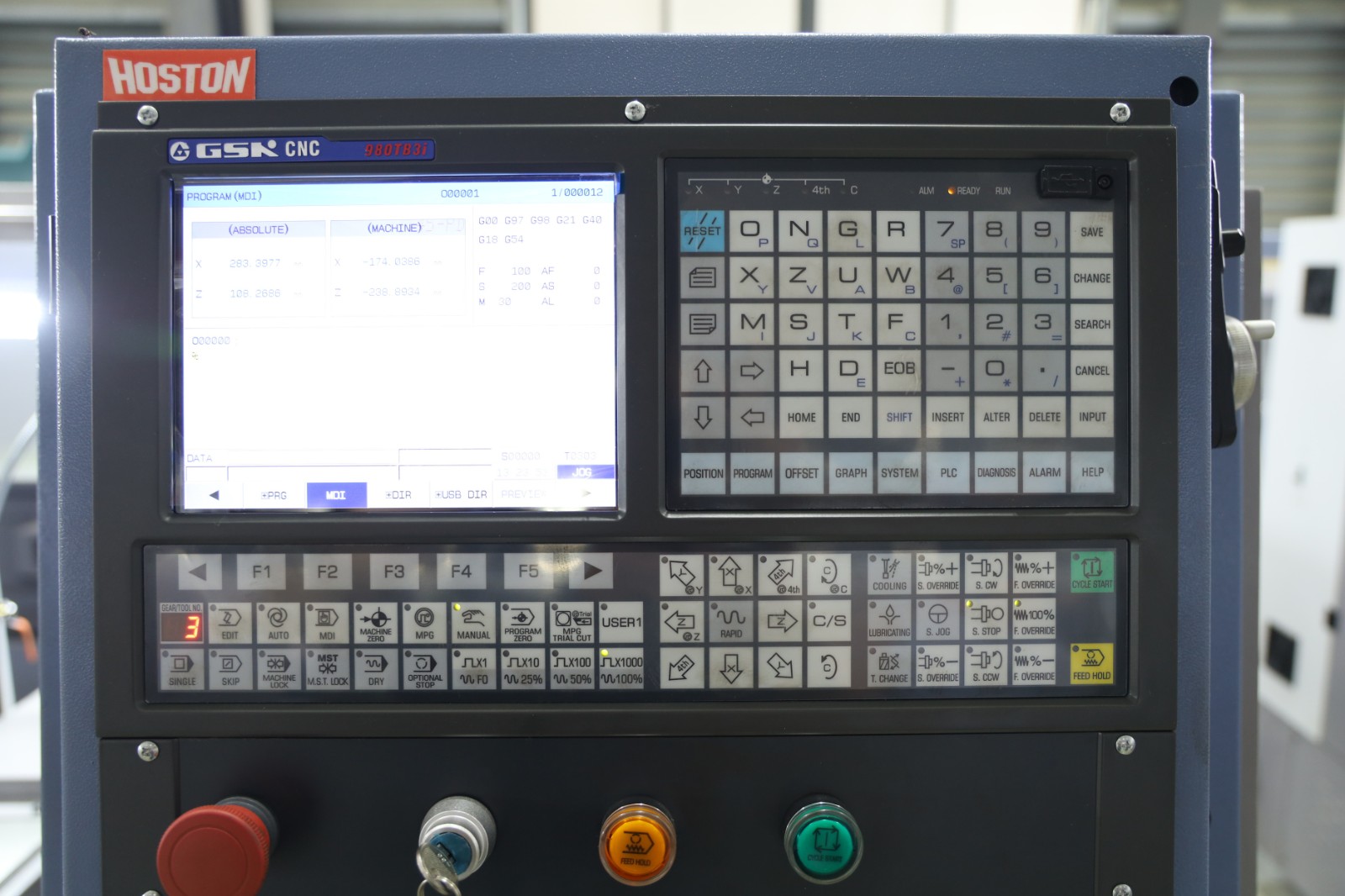

Flexible Control System and High Expandability: Highly compatible with mainstream CNC systems including FANUC, Siemens, and GSK. Supports optional hydraulic chuck, hydraulic tailstock, and bar feeder for automated manufacturing line integration.
